Sauna Cabin 4m x 4m, 16 m²

Model KH-SAUNA-01

A 16 m² sauna cabin kit on a square plan divided by partitions, with walls of 44 mm tongue-and-groove logs.

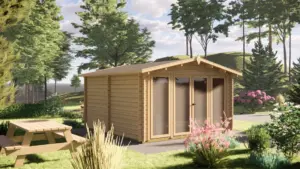

Sauna Cabin 4m x 4m, 16 m², exterior view
01/05 Visualisation shows optional extras

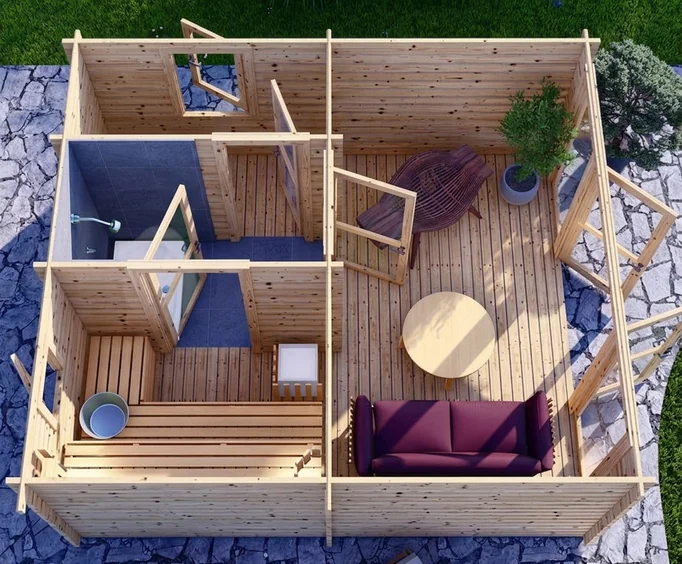

Sauna Cabin 4m x 4m, 16 m², cutaway view from above showing the layout
02/05 Visualisation shows optional extras

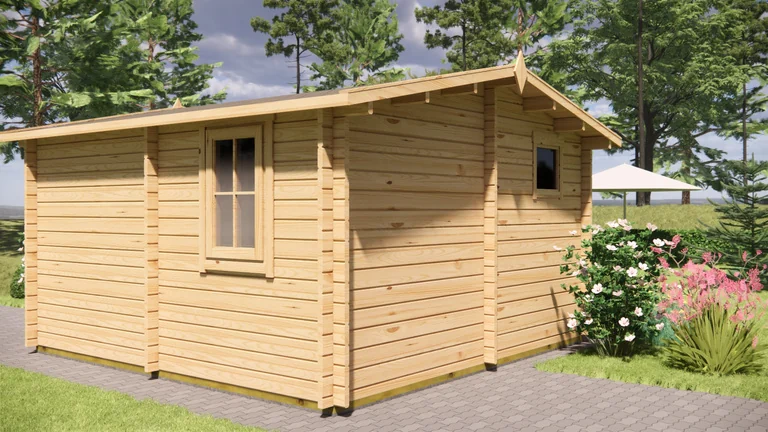

Sauna Cabin 4m x 4m, 16 m², exterior view 2
03/05 Visualisation shows optional extras

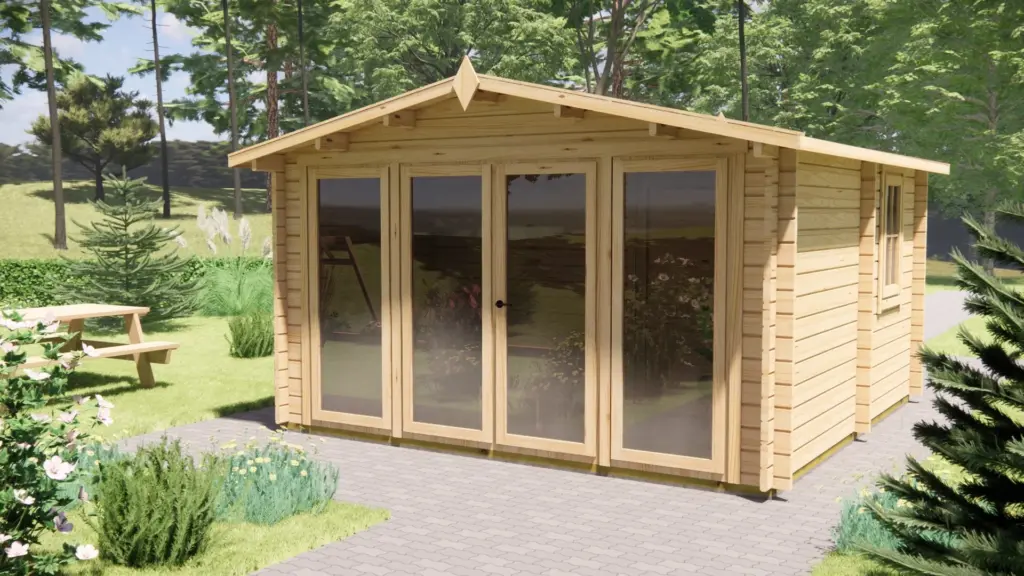

Sauna Cabin 4m x 4m, 16 m², exterior view 3
04/05 Visualisation shows optional extras

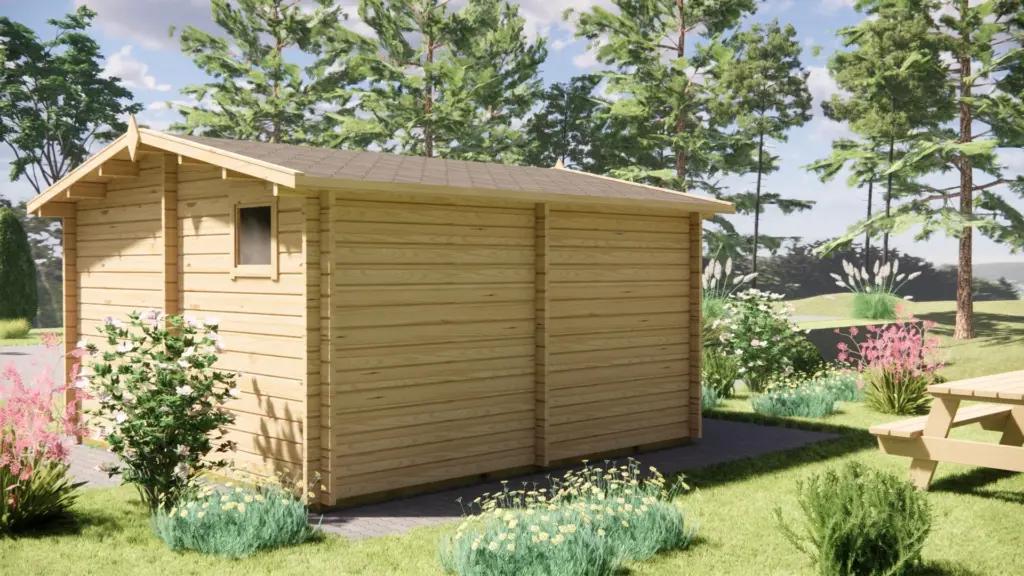

Sauna Cabin 4m x 4m, 16 m², exterior view 4
05/05 Visualisation shows optional extras
  1. Show picture 1 of 5
  2. Show picture 2 of 5
  3. Show picture 3 of 5
  4. Show picture 4 of 5
  5. Show picture 5 of 5

Kit from €3,040

  • Bank transfer only: the full amount, or a 50% deposit first and the balance with the delivery invoice when your kit is ready.
  • Made to order. Allow 8 to 10 weeks to delivery from the day your payment or deposit reaches us.
  • 10-year warranty on the timber structure.
  • Drawings and step-by-step instructions in English for your model are included.
  • Delivery is not included. We price it for your address and invoice it separately when your kit is ready.

Choose the options Ask a question

What the kit price covers

Everything in the first list below is included in the kit price of the Sauna Cabin 4m x 4m, 16 m². The second list shows what is not.

In the kit price

  • The timber structure of the building
  • Step-by-step instructions for your model
  • Drawings and a parts list for your model
  • Fixings for assembly

Not in the kit price

  • The options below, each priced separately
  • Sauna stove and flue: not part of the kit and not sold as options. Benches: not part of the kit
  • A foundation: you build the base to suit your ground
  • Assembly: kits are sold for self-assembly
  • Paint and wood finish: the kit arrives as bare timber. Paint it yourself, any colour
  • Delivery: invoiced separately when your kit is ready
  • Unloading: the lorry has no crane, so you need a forklift or a telehandler on site
  • Electrics, lighting, heating and water: none of them is sold as an option

Floor plan

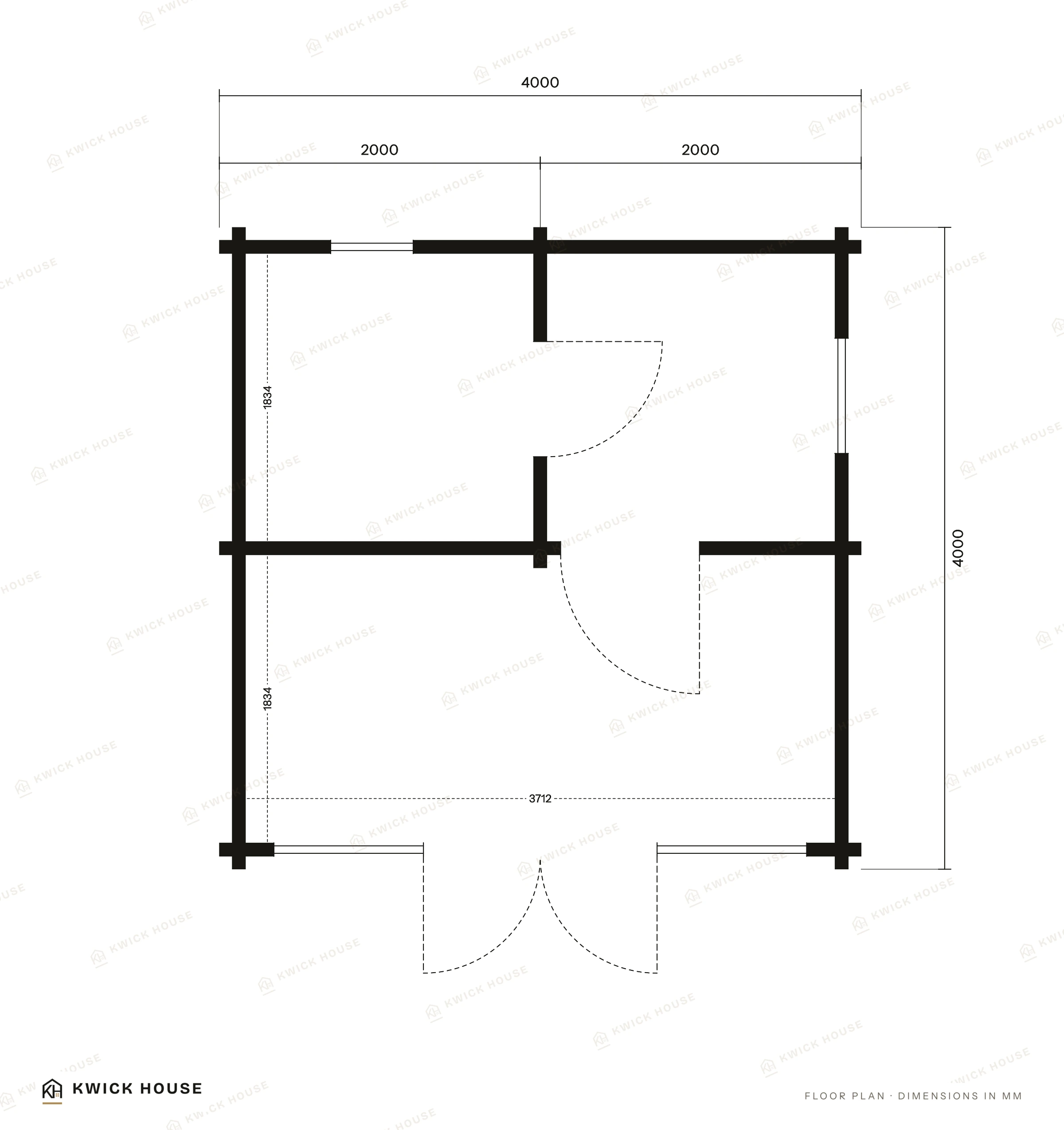

Floor plan of the Sauna Cabin 4m x 4m, 16 m²: 4,000 x 4,000 mm overall, with dimensions in millimetres. Enlarge

Dimensions are in millimetres. The other drawings for your model come with the kit. How assembly works

Specification

External dimensions4,000 x 4,000 mm
Floor area16 m²
Walls44 mm

Full specification on request. Drawings and step-by-step instructions for your model come with the kit.

Delivery, payment and warranty

Made to order
Allow 8 to 10 weeks to delivery from the day your payment reaches us, whether the full amount or the deposit. That counts the weeks in the workshop and the time on the road, and it is an estimate rather than a fixed date. How it works, step by step
Unloading
The kit comes by road on pallets and stays at our risk until the pallets are handed over at your address. The lorry has no crane, so you unload it with a forklift or a telehandler that you hire. Delivery and payment
Delivery price
Delivery is not in the kit price. We price it for your address and invoice it separately when your kit is ready, together with the balance if you paid a deposit. The kit leaves the workshop once that payment reaches us.
Warranty and parts
SIA Tuuya, the seller, gives a 10-year warranty on the timber structure. We replace a missing or damaged part free of charge and send it within 2 weeks.

Kit options and prices

Prices are for the Sauna Cabin 4m x 4m, 16 m², and come on top of the kit price. An option is added only when you select it.

Roof covering
No roof covering. The roof boards are in the kit.
+€250 Supplied with underlay, verge trims and fixings, and laid over the roof boards in the kit.
What is it?

Bitumen roofing shingles, supplied with the underlay, verge trims and fixings. They are laid over the roof boards that come with the kit.

+€450 Supplied with underlay, verge trims and fixings, and laid over the roof boards in the kit.
What is it?

Steel roofing sheet, supplied with the underlay, verge trims and fixings. It is laid over the roof boards that come with the kit.

Windows and external doors
Kit without windows or external doors.
+€2,500
What is it?

Windows and external doors with frames in uPVC, a rigid plastic. They arrive as finished, triple-glazed units.

+€1,000
What is it?

Windows and external doors with timber frames. They arrive as finished, single-glazed units.

Rainwater system
No gutters or downpipes.
+€950 Gutters and downpipes for this roof.
What is it?

Gutters along the edge of the roof collect rainwater, and downpipes carry it down. Both are steel.

Insulation, 100 mm

Floor, walls and roof are separate lines. Leave all three unticked for a kit without insulation.

+€300
What is it?

Insulation for the floor: XPS boards, 100 mm thick, with a second layer of battens to hold them.

+€400
What is it?

Insulation for the walls: rock wool, 100 mm thick, with battens, a vapour barrier against the logs and a breathable membrane over the wool.

+€500
What is it?

Insulation for the roof: rock wool, 100 mm thick, to fit on the inside of the roof, with battens, a vapour barrier on the room side and a breathable membrane over the wool. The inner boarding that covers the insulation is not included.

Order summary

Kit
€3,040
Options
+€0
  • No options chosen yet.

Kit and options
€3,040
Delivery
Invoiced separately
VAT
As shown at checkout

What happens after you order

  1. Add the kit to your basket and place the order at checkout. Nothing is paid online: our bank details are shown when you place the order and sent in the order email.
  2. Pay by bank transfer, the full amount or a 50% deposit, with your order number as the payment reference. Your kit goes into production once at least the deposit reaches us.
  3. When the kit is ready, we email you the delivery invoice, with the balance if you paid a deposit, to pay in one transfer. Once that payment reaches us, we agree the delivery day with you before the lorry leaves the workshop.

What to know before you order

Do I need planning permission?

It depends on where the building goes and how you use it. Check the rules for your address before you order.

For the UK, see our guide to planning permission for log cabins.

Is the kit insulated?

With 44 mm walls and no insulation, this is a seasonal building. Insulation is an option on this model, chosen part by part above: floor, walls and roof, 100 mm each. Heating and electrics are not part of the kit.

Are windows and external doors included?

No. They are an option, with uPVC or timber frames. The option also covers the glazed front, made up of two fixed panels and a door.

Is a stove or flue included?

No stove or flue comes with the kit, and we sell neither.

Are the sauna benches included?

No. The benches are not part of the kit.
