Wooden Garage 9m x 6m, 49 m²

Model KH-GARAGE-05

A 49 m² wooden garage kit with log walls and an open interior; the garage doors are a separate option.

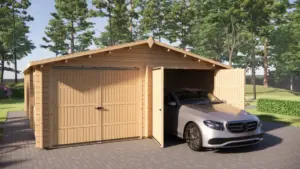

Wooden Garage 9m x 6m, 49 m², exterior view 2
01/04 Visualisation shows optional extras

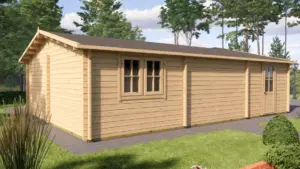

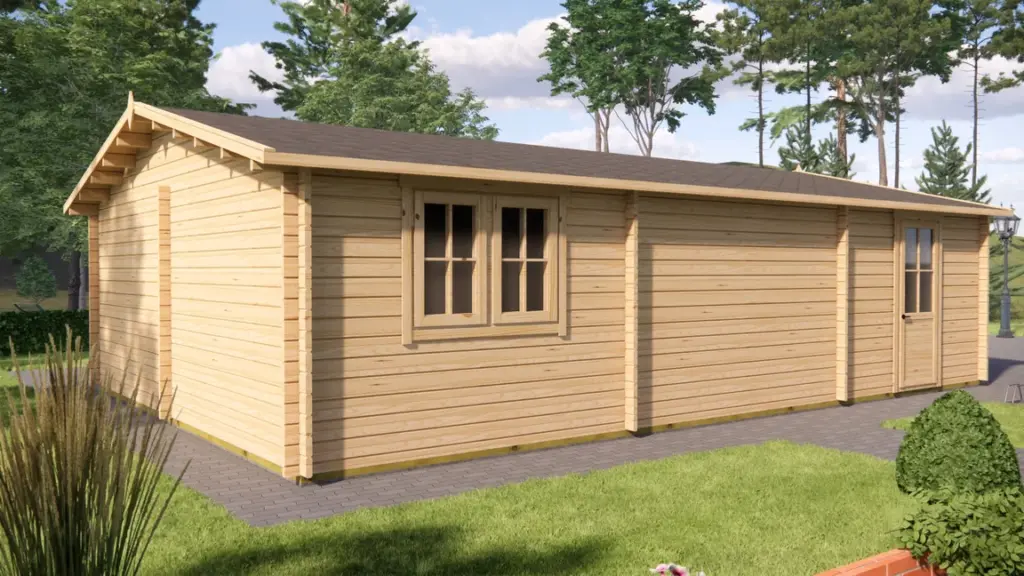

Wooden Garage 9m x 6m, 49 m², exterior view
02/04 Visualisation shows optional extras

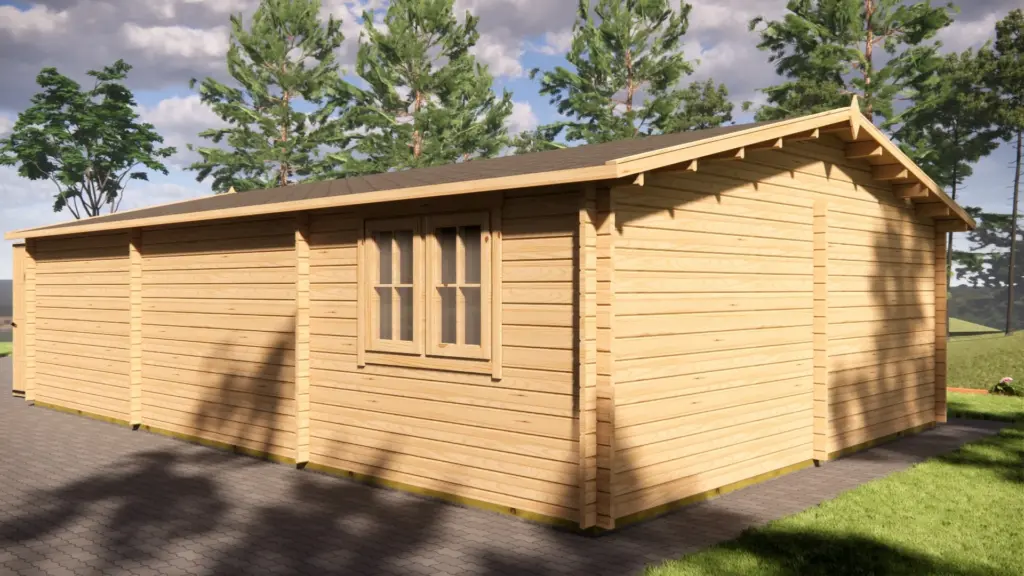

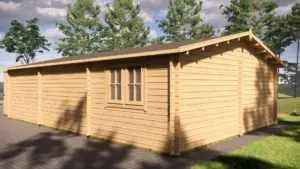

Wooden Garage 9m x 6m, 49 m², exterior view 3
03/04 Visualisation shows optional extras

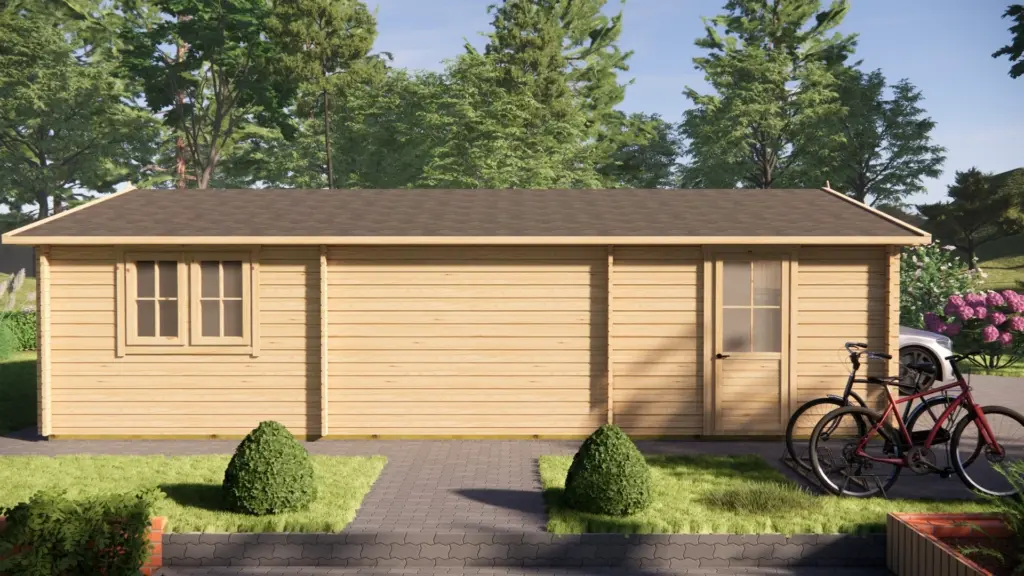

Wooden Garage 9m x 6m, 49 m², exterior view 4
04/04 Visualisation shows optional extras
  1. Show picture 1 of 4
  2. Show picture 2 of 4
  3. Show picture 3 of 4
  4. Show picture 4 of 4

Kit from €4,910

  • Bank transfer only: the full amount, or a 50% deposit first and the balance with the delivery invoice when your kit is ready.
  • Made to order. Allow 8 to 10 weeks to delivery from the day your payment or deposit reaches us.
  • 10-year warranty on the timber structure.
  • Drawings and step-by-step instructions in English for your model are included.
  • Delivery is not included. We price it for your address and invoice it separately when your kit is ready.

Choose the options Ask a question

What the kit price covers

Everything in the first list below is included in the kit price of the Wooden Garage 9m x 6m, 49 m². The second list shows what is not.

In the kit price

  • The timber structure of the building
  • Floor boards, 18 mm
  • Roof boards, 18 mm
  • Treated floor bearers, 45 x 50 mm
  • Step-by-step instructions for your model
  • Drawings and a parts list for your model
  • Fixings for assembly

Not in the kit price

  • The options below, each priced separately
  • A foundation: you build the base to suit your ground
  • Assembly: kits are sold for self-assembly
  • Paint and wood finish: apart from the treated floor bearers, the kit arrives as bare timber. Paint it yourself, any colour
  • Delivery: invoiced separately when your kit is ready
  • Unloading: the lorry has no crane, so you need a forklift or a telehandler on site
  • Electrics, lighting, heating and water: none of them is sold as an option

Floor plan

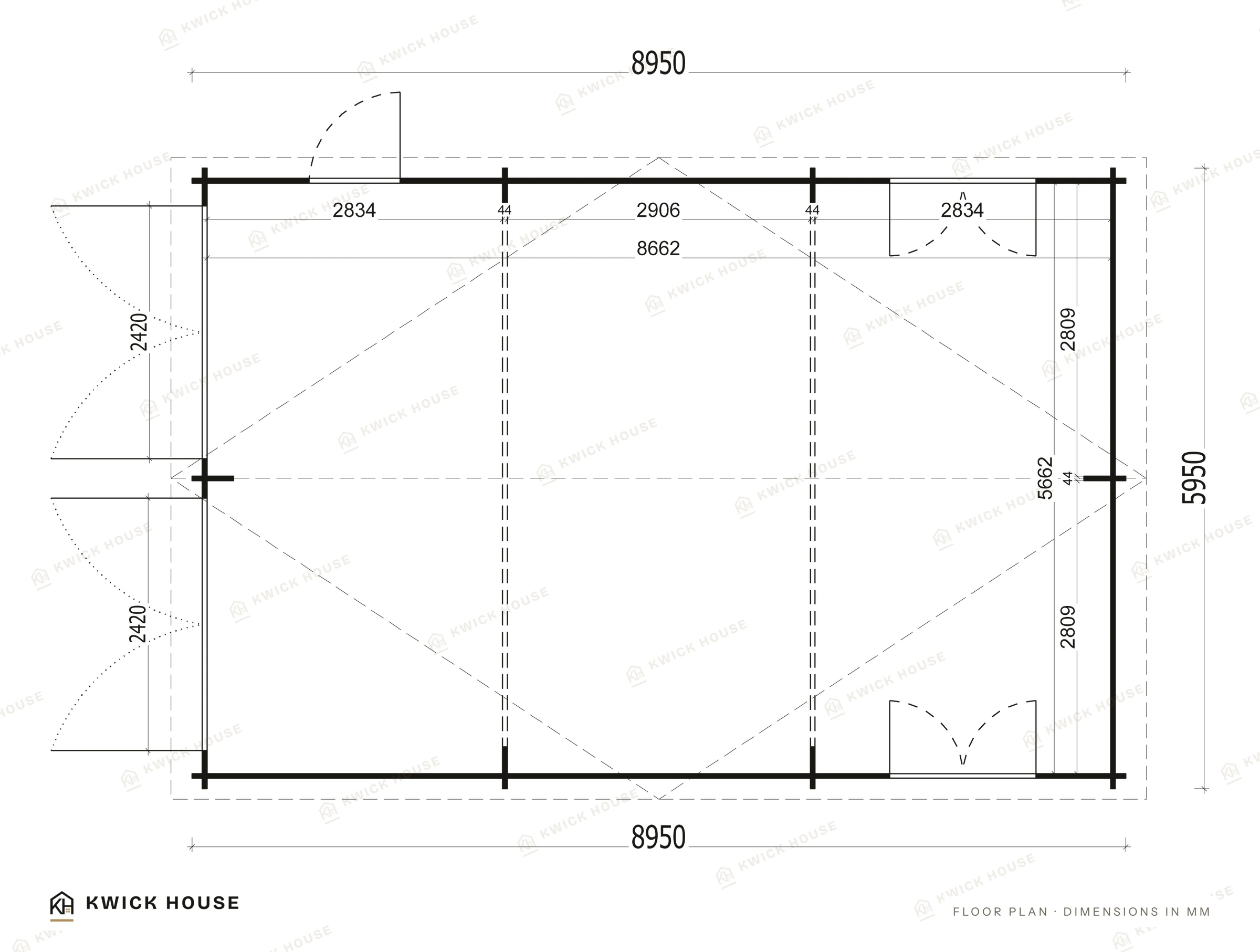

Floor plan of the Wooden Garage 9m x 6m, 49 m²: 8,950 x 5,950 mm overall, with dimensions in millimetres. Enlarge

Dimensions are in millimetres. The other drawings for your model come with the kit. How assembly works

Specification

External dimensions8,950 x 5,950 mm
Floor area49 m²
Walls44 mm, tongue-and-groove, spruce or pine
Rooms1
Ridge height2,770 mm
Floor boards18 mm
Roof boards18 mm
Floor bearers45 x 50 mm, treated
External doors1 at 850 x 1920 mm; in the options
Windows2 at 1380 x 1050 mm; in the options

Drawings and step-by-step instructions for your model come with the kit. The same part number appears in the parts list and on the drawings.

Delivery, payment and warranty

Made to order
Allow 8 to 10 weeks to delivery from the day your payment reaches us, whether the full amount or the deposit. That counts the weeks in the workshop and the time on the road, and it is an estimate rather than a fixed date. How it works, step by step
Unloading
The kit comes by road on pallets and stays at our risk until the pallets are handed over at your address. The lorry has no crane, so you unload it with a forklift or a telehandler that you hire. Delivery and payment
Delivery price
Delivery is not in the kit price. We price it for your address and invoice it separately when your kit is ready, together with the balance if you paid a deposit. The kit leaves the workshop once that payment reaches us.
Warranty and parts
SIA Tuuya, the seller, gives a 10-year warranty on the timber structure. We replace a missing or damaged part free of charge and send it within 2 weeks.

Kit options and prices

Prices are for the Wooden Garage 9m x 6m, 49 m², and come on top of the kit price. An option is added only when you select it.

Roof covering
No roof covering. The 18 mm roof boards are in the kit.
+€650 Supplied with underlay, verge trims and fixings, and laid over the 18 mm roof boards in the kit.
What is it?

Bitumen roofing shingles, supplied with the underlay, verge trims and fixings. They are laid over the roof boards that come with the kit.

+€1,350 Supplied with underlay, verge trims and fixings, and laid over the 18 mm roof boards in the kit.
What is it?

Steel roofing sheet, supplied with the underlay, verge trims and fixings. It is laid over the roof boards that come with the kit.

Windows and external doors
Kit without windows or the external door.
+€1,450 The external door and the 2 windows in the specification.
What is it?

Windows and external doors with frames in uPVC, a rigid plastic. They arrive as finished, triple-glazed units.

+€500 The external door and the 2 windows in the specification.
What is it?

Windows and external doors with timber frames. They arrive as finished, single-glazed units.

Rainwater system
No gutters or downpipes.
+€1,500 Gutters and downpipes for this roof.
What is it?

Gutters along the edge of the roof collect rainwater, and downpipes carry it down. Both are steel.

Insulation, 100 mm

Floor, walls and roof are separate lines. Leave all three unticked for a kit without insulation.

+€850
What is it?

Insulation for the floor: XPS boards, 100 mm thick, with a second layer of battens to hold them.

+€1,000
What is it?

Insulation for the walls: rock wool, 100 mm thick, with battens, a vapour barrier against the logs and a breathable membrane over the wool.

+€1,450
What is it?

Insulation for the roof: rock wool, 100 mm thick, to fit on the inside of the roof, with battens, a vapour barrier on the room side and a breathable membrane over the wool. The inner boarding that covers the insulation is not included.

Garage doors
No garage doors.
+€1,200
What is it?

Garage doors for this model. The price covers both pairs, one for each opening.

Order summary

Kit
€4,910
Options
+€0
  • No options chosen yet.

Kit and options
€4,910
Delivery
Invoiced separately
VAT
As shown at checkout

What happens after you order

  1. Add the kit to your basket and place the order at checkout. Nothing is paid online: our bank details are shown when you place the order and sent in the order email.
  2. Pay by bank transfer, the full amount or a 50% deposit, with your order number as the payment reference. Your kit goes into production once at least the deposit reaches us.
  3. When the kit is ready, we email you the delivery invoice, with the balance if you paid a deposit, to pay in one transfer. Once that payment reaches us, we agree the delivery day with you before the lorry leaves the workshop.

What to know before you order

Do I need planning permission?

It depends on where the building goes and how you use it. Check the rules for your address before you order.

For the UK, see our guide to planning permission for log cabins.

Is the kit insulated?

With 44 mm walls and no insulation, this is a seasonal building. Insulation is an option on this model, chosen part by part above: floor, walls and roof, 100 mm each. Heating and electrics are not part of the kit.

Are the windows and the external door included?

No. They are an option, with uPVC or timber frames. The option covers the external door and the 2 windows in the specification. The garage doors are not part of it.

Are the garage doors included?

No. They are a separate option, and the option price covers both pairs of garage doors.

Similar kits

Kits in the same category, closest in floor area.

A question about this model? Write to us

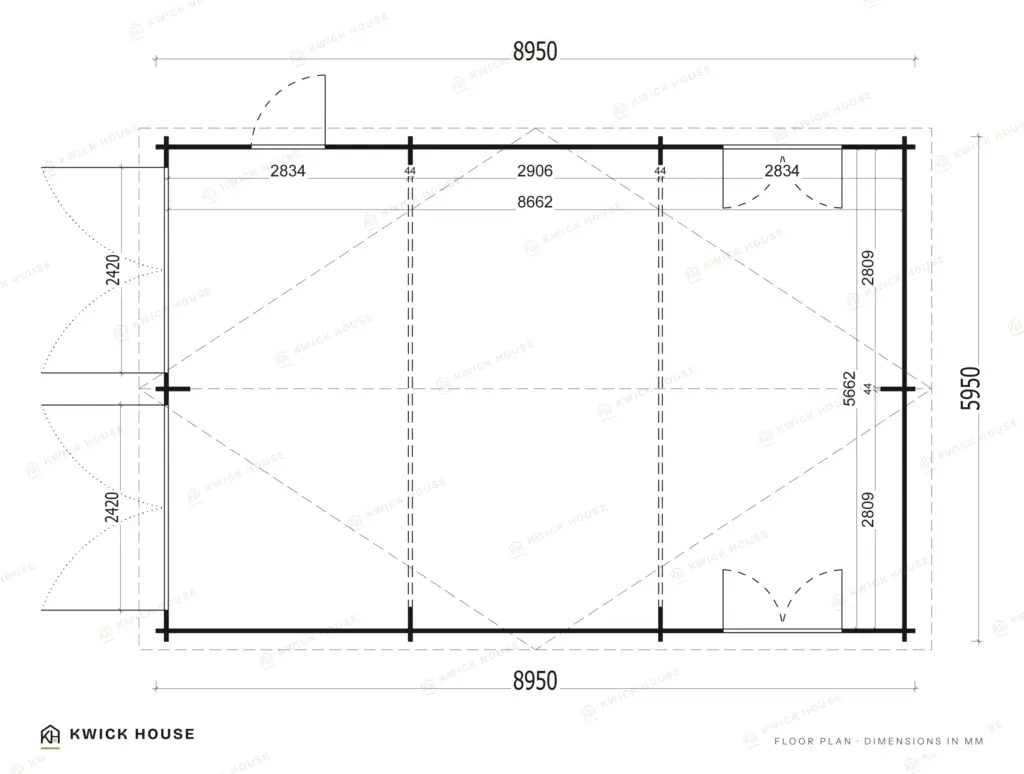

Floor plan of the Wooden Garage 9m x 6m, 49 m²: 8,950 x 5,950 mm overall, with dimensions in millimetres.
