Log Cabin 5m x 4m with Loft, 35 m²

Model KH-HOUSE-06

A 35 m² log cabin kit with a loft the size of the ground floor, and single-skin walls of 44 mm tongue-and-groove logs.

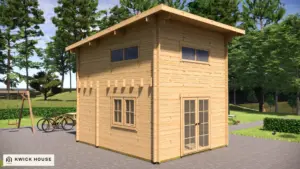

Log Cabin 5m x 4m with Loft, 35 m², visualisation of the front with a glazed double door and one side
01/04 Visualisation of the Log Cabin 5m x 4m with Loft, 35 m²: on the right the front, with the glazed double door and a strip window at loft level above it; on the left one side, with a window on each level. The swing, the bicycles and the picnic table are not part of the kit. Options shown: windows and external door.

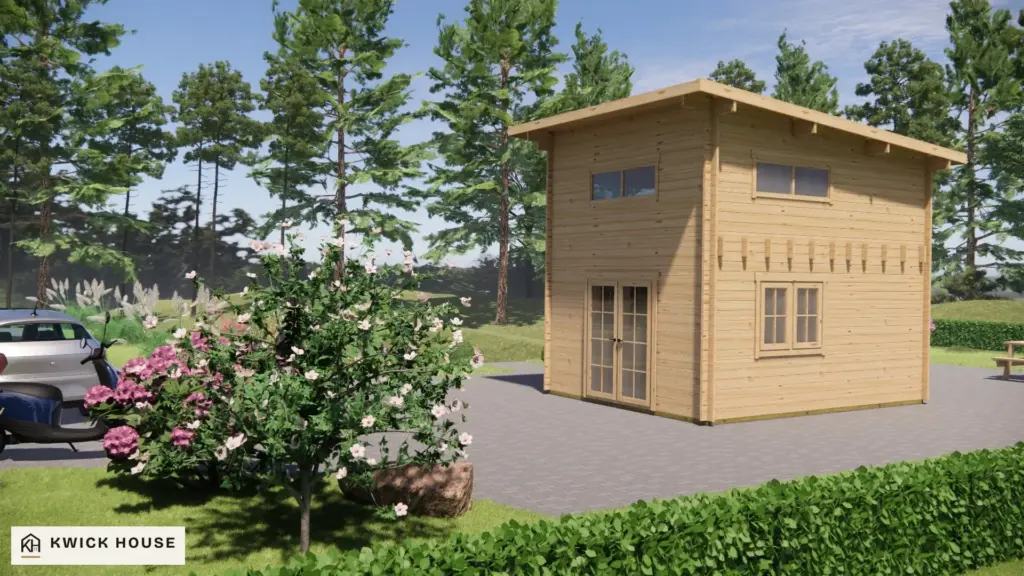

Log Cabin 5m x 4m with Loft, 35 m², corner visualisation of the front and the other side
02/04 Visualisation of the Log Cabin 5m x 4m with Loft, 35 m² from the other front corner: the glazed double door on the left, and the other side with a window on each level. The car, the scooter and the planting are not part of the kit. Options shown: windows and external door.

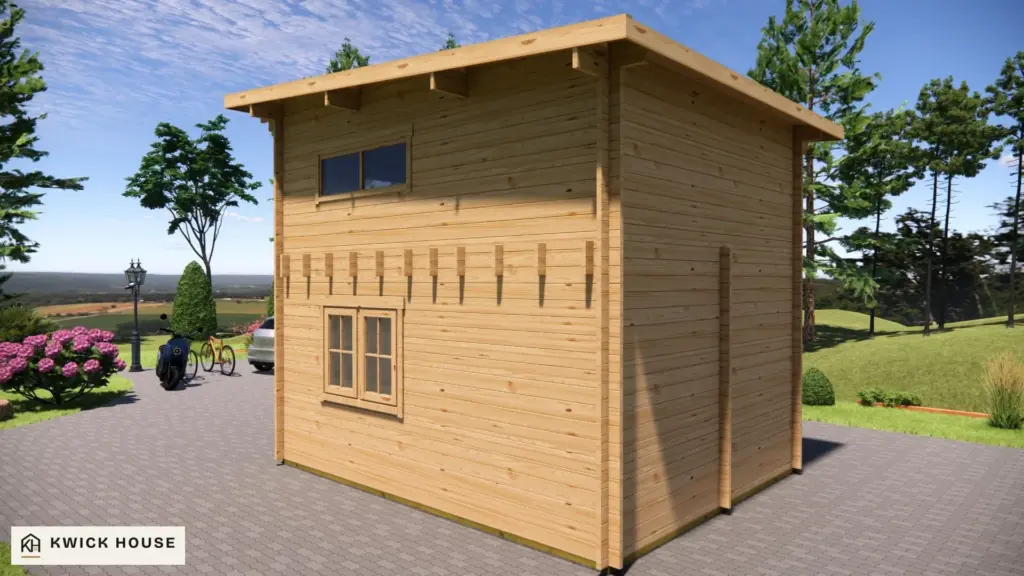

Log Cabin 5m x 4m with Loft, 35 m², visualisation of the other side with two windows and the back wall with no openings
03/04 Visualisation of the Log Cabin 5m x 4m with Loft, 35 m² from a back corner: the other side with a window on each level, and on the right the back wall, which has no openings. The scooter, the bicycle, the car and the planting are not part of the kit. Options shown: windows.

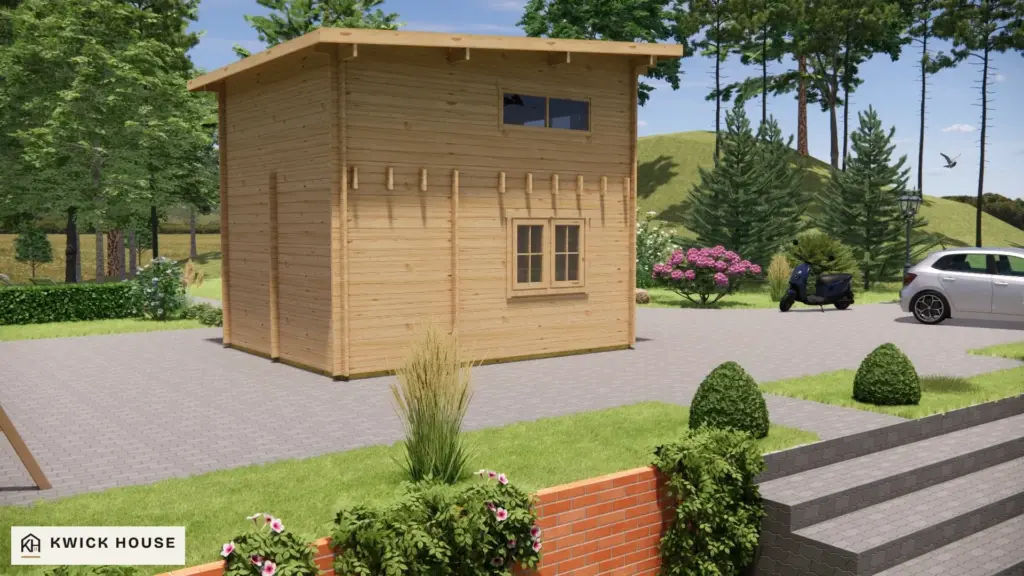

Log Cabin 5m x 4m with Loft, 35 m², visualisation of the back wall and one side with two windows
04/04 Visualisation of the Log Cabin 5m x 4m with Loft, 35 m² from the other back corner: the back wall on the left, and one side with a window on each level. The car, the scooter, the steps and the planting are not part of the kit. Options shown: windows.
  1. Show picture 1 of 4
  2. Show picture 2 of 4
  3. Show picture 3 of 4
  4. Show picture 4 of 4

Kit from €5,030

  • Bank transfer only: the full amount, or a 50% deposit first and the balance with the delivery invoice when your kit is ready.
  • Made to order. Allow 8 to 10 weeks to delivery from the day your payment or deposit reaches us.
  • 10-year warranty on the timber structure.
  • Drawings and step-by-step instructions in English for your model are included.
  • Delivery is not included. We price it for your address and invoice it separately when your kit is ready.

Choose the options Ask a question

What the kit price covers

Everything in the first list below is included in the kit price of the Log Cabin 5m x 4m with Loft, 35 m². The second list shows what is not.

In the kit price

  • The timber structure of the building
  • Floor boards, 18 mm
  • Roof boards, 18 mm
  • Treated floor bearers, 45 x 50 mm
  • Stairs to the loft
  • 1 internal door, 850 x 1920 mm
  • Step-by-step instructions for your model
  • Drawings and a parts list for your model
  • Fixings for assembly

Not in the kit price

  • The options below, each priced separately
  • A foundation: you build the base to suit your ground
  • Assembly: kits are sold for self-assembly
  • Paint and wood finish: apart from the treated floor bearers, the kit arrives as bare timber. Paint it yourself, any colour
  • Delivery: invoiced separately when your kit is ready
  • Unloading: the lorry has no crane, so you need a forklift or a telehandler on site
  • Electrics, lighting, heating and water: none of them is sold as an option

Ground floor and loft plans

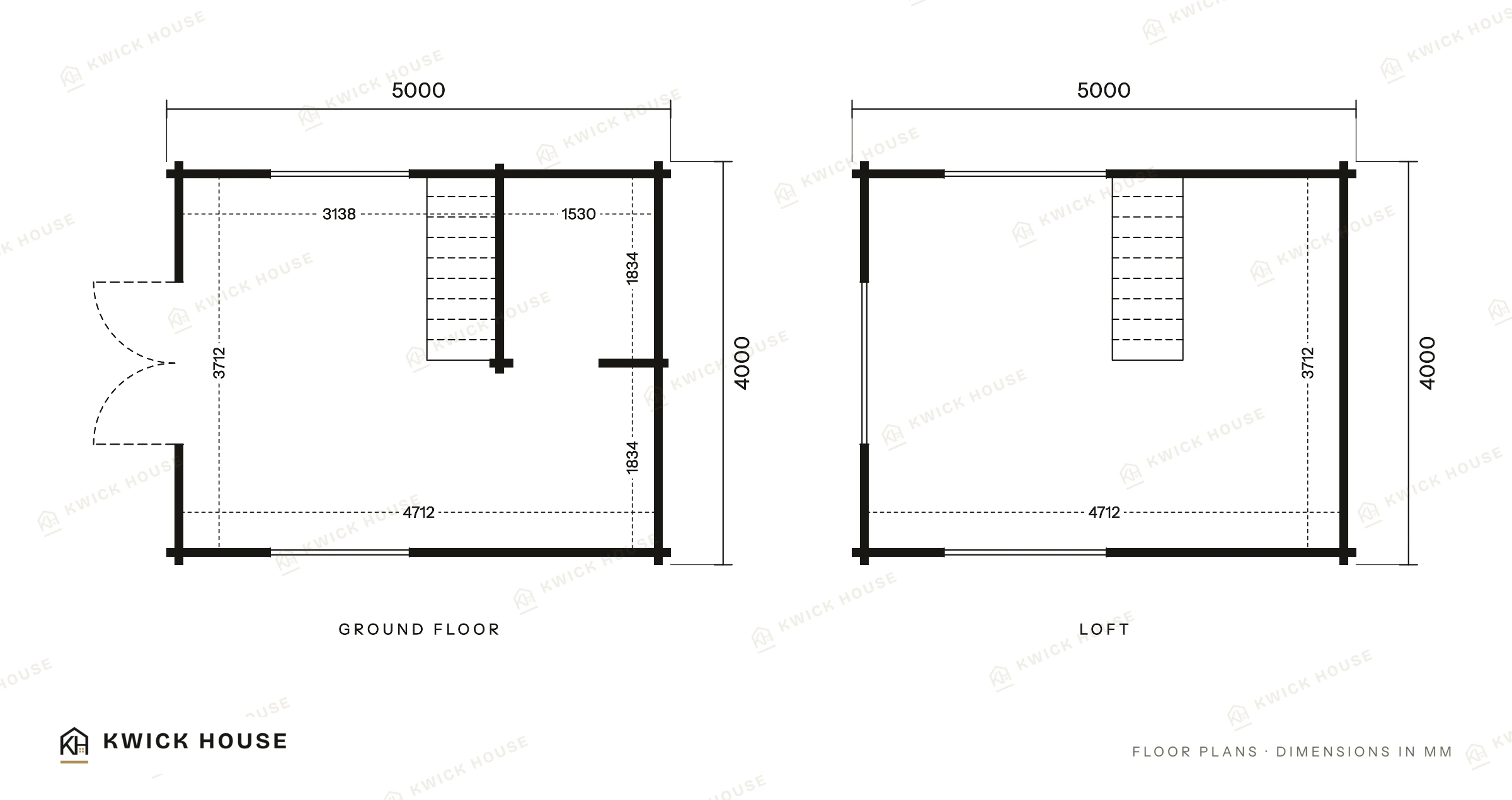

Floor plans of the Log Cabin 5m x 4m with Loft, 35 m²: the ground floor and the loft, each 5,000 x 4,000 mm overall, with dimensions in millimetres. Enlarge

Dimensions are in millimetres. The other drawings for your model come with the kit. How assembly works

Specification

External dimensions5,000 x 4,000 mm. Measured over the log ends at the corners, which project 100 mm beyond the walls. The roof overhang is not counted.
Floor area35 m² 17.5 m² on the ground floor and 17.5 m² in the loft.
Walls44 mm, tongue-and-groove, spruce or pine
Levels2
Rooms3
Ridge height4,385 mm
Floor boards18 mm
Roof boards18 mm
Floor bearers45 x 50 mm, treated
Internal doors1 at 850 x 1920 mm; in the kit
External doors1 at 1610 x 1920 mm; in the options
Windows3 at 1610 x 500 mm, 2 at 1380 x 1050 mm; in the options

Drawings and step-by-step instructions for your model come with the kit. The same part number appears in the parts list and on the drawings.

Delivery, payment and warranty

Made to order
Allow 8 to 10 weeks to delivery from the day your payment reaches us, whether the full amount or the deposit. That counts the weeks in the workshop and the time on the road, and it is an estimate rather than a fixed date. How it works, step by step
Unloading
The kit comes by road on pallets and stays at our risk until the pallets are handed over at your address. The lorry has no crane, so you unload it with a forklift or a telehandler that you hire. Delivery and payment
Delivery price
Delivery is not in the kit price. We price it for your address and invoice it separately when your kit is ready, together with the balance if you paid a deposit. The kit leaves the workshop once that payment reaches us.
Warranty and parts
SIA Tuuya, the seller, gives a 10-year warranty on the timber structure. We replace a missing or damaged part free of charge and send it within 2 weeks.

Kit options and prices

Prices are for the Log Cabin 5m x 4m with Loft, 35 m², and come on top of the kit price. An option is added only when you select it.

Roof covering
No roof covering. The 18 mm roof boards are in the kit.
+€275 Bitumen shingles with underlay, verge trims and fixings, laid over the 18 mm roof boards in the kit.
What is it?

Bitumen roofing shingles, supplied with the underlay, verge trims and fixings. They are laid over the roof boards that come with the kit.

+€600 Steel sheet with underlay, verge trims and fixings, laid over the 18 mm roof boards in the kit.
What is it?

Steel roofing sheet, supplied with the underlay, verge trims and fixings. It is laid over the roof boards that come with the kit.

Windows and external doors
Kit without windows or the external door. The internal door is always included.
+€3,200 The external door and the 5 windows in the specification, with uPVC frames.
What is it?

Windows and external doors with frames in uPVC, a rigid plastic. They arrive as finished, triple-glazed units.

+€1,150 The external door and the 5 windows in the specification, with timber frames.
What is it?

Windows and external doors with timber frames. They arrive as finished, single-glazed units.

Rainwater system
No gutters or downpipes.
+€950 Steel gutters and downpipes for this roof.
What is it?

Gutters along the edge of the roof collect rainwater, and downpipes carry it down. Both are steel.

Insulation, 100 mm

Floor, walls and roof are separate lines. Leave all three unticked for a kit without insulation.

+€350 100 mm of XPS insulation for the floor, with a second layer of battens.
What is it?

Insulation for the floor: XPS boards, 100 mm thick, with a second layer of battens to hold them.

+€500 100 mm of rock wool for the walls, with battens, a vapour barrier against the logs and a breathable membrane over the wool.
What is it?

Insulation for the walls: rock wool, 100 mm thick, with battens, a vapour barrier against the logs and a breathable membrane over the wool.

+€700 100 mm of rock wool to fit on the inside of the roof, with battens, a vapour barrier on the room side and a breathable membrane over the wool. The inner boarding that covers the insulation is not included.
What is it?

Insulation for the roof: rock wool, 100 mm thick, to fit on the inside of the roof, with battens, a vapour barrier on the room side and a breathable membrane over the wool. The inner boarding that covers the insulation is not included.

Order summary

Kit
€5,030
Options
+€0
  • No options chosen yet.

Kit and options
€5,030
Delivery
Invoiced separately
VAT
As shown at checkout

What happens after you order

  1. Add the kit to your basket and place the order at checkout. Nothing is paid online: our bank details are shown when you place the order and sent in the order email.
  2. Pay by bank transfer, the full amount or a 50% deposit, with your order number as the payment reference. Your kit goes into production once at least the deposit reaches us.
  3. When the kit is ready, we email you the delivery invoice, with the balance if you paid a deposit, to pay in one transfer. Once that payment reaches us, we agree the delivery day with you before the lorry leaves the workshop.

What to know before you order

Do I need planning permission?

It depends on where the building goes and how you use it. Check the rules for your address before you order.

For the UK, see our guide to planning permission for log cabins.

Is the kit insulated?

With 44 mm walls and no insulation, this is a seasonal building. Insulation is an option on this model, chosen part by part above: floor, walls and roof, 100 mm each. Heating and electrics are not part of the kit.

Are the windows and the external door included?

No. They are an option, with uPVC or timber frames. The option covers the 5 windows in the specification and the external door, a double door. The internal door is in the kit.

Why is a 5m x 4m cabin 35 m²?

The 35 m² is the floor area of both levels together: 17.5 m² on the ground floor and 17.5 m² in the loft, which covers the whole ground floor. The 5m x 4m is the size on plan, not a floor area.

What are the walls made of?

The walls are one layer of 44 mm tongue-and-groove logs in spruce or pine, stacked one on top of another. There is no second log layer and no cladding on this model.

How is this cabin different from the version with cladding?

The plans, the floor area, the door and window openings and the 45 x 50 mm floor bearers are the same. The version with cladding adds 18 mm cladding boards to the outside of the same 44 mm log walls.

How it could look

Visualisations of the Log Cabin 5m x 4m with Loft, 35 m² on a plot, shown with optional extras.

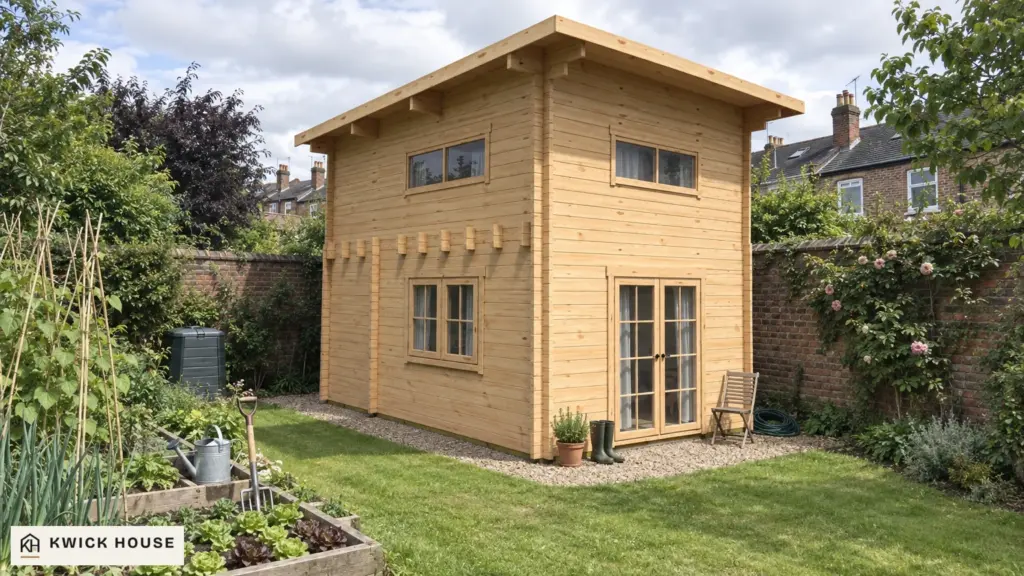

Log Cabin 5m x 4m with Loft, 35 m², visualisation of the front and one side at the end of a walled kitchen garden
Visualisation: how the Log Cabin 5m x 4m with Loft, 35 m² could look at the end of a walled back garden with vegetable beds. The chair, the boots, the pot and the garden tools are not part of the kit. Options shown: windows and external door.

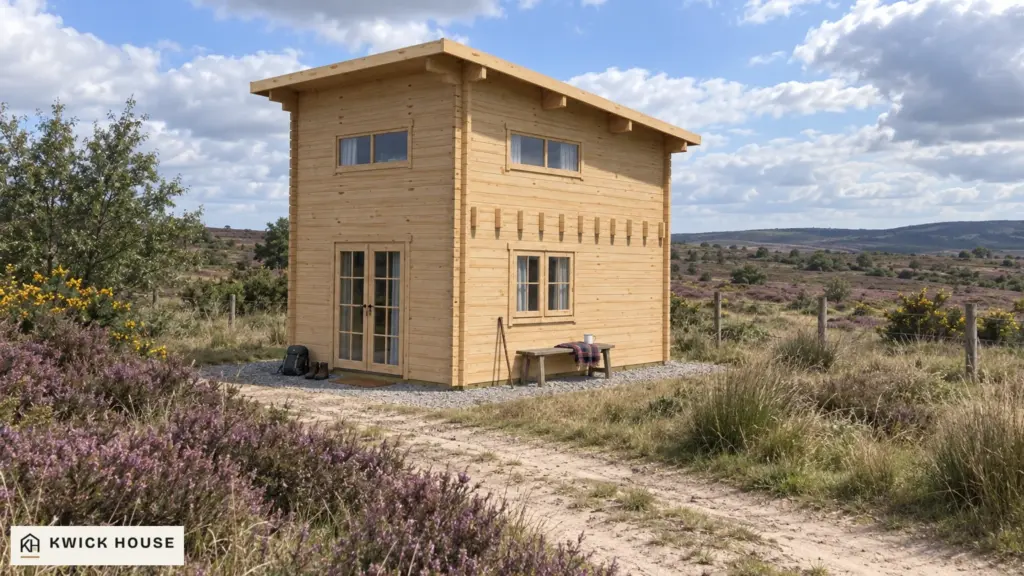

Log Cabin 5m x 4m with Loft, 35 m², visualisation of the front and the other side on a heathland plot
Visualisation: how the Log Cabin 5m x 4m with Loft, 35 m² could look at the edge of open heathland. The bench, the boots, the rucksack and the other items are not part of the kit. Options shown: windows and external door.
