Log Cabin 68 m² with Cladding

Name: Log Cabin 68 m² with Cladding
Brand: KWICK HOUSE
SKU: KH-HOUSE-02-CL
Availability: InStock

Model KH-HOUSE-02-CL

A 68 m² single-storey, L-shaped log cabin kit with six rooms, a covered terrace and 18 mm cladding over 44 mm logs.

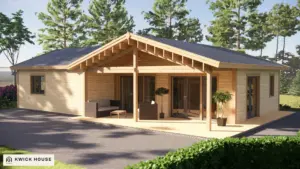

Log Cabin 68 m² with Cladding, visualisation of the covered terrace with glazed double doors — 01/05 Visualisation of the Log Cabin 68 m² with Cladding from the terrace side: the covered terrace under its gable roof, with glazed double doors opening onto the decking. The furniture and plants are not part of the kit. Shown with horizontal cladding and the optional roof covering, windows and external doors, and terrace decking.

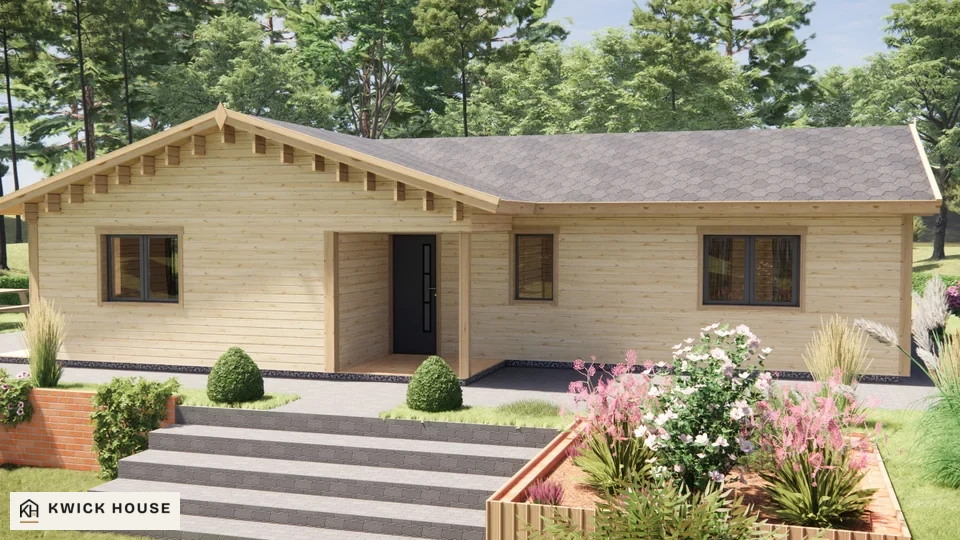

Log Cabin 68 m² with Cladding, visualisation of the entrance side with its recessed porch — 02/05 Visualisation of the Log Cabin 68 m² with Cladding from the entrance side, with the porch set back beside a gable end. Shown with horizontal cladding and the optional roof covering, windows and external doors, and terrace decking.

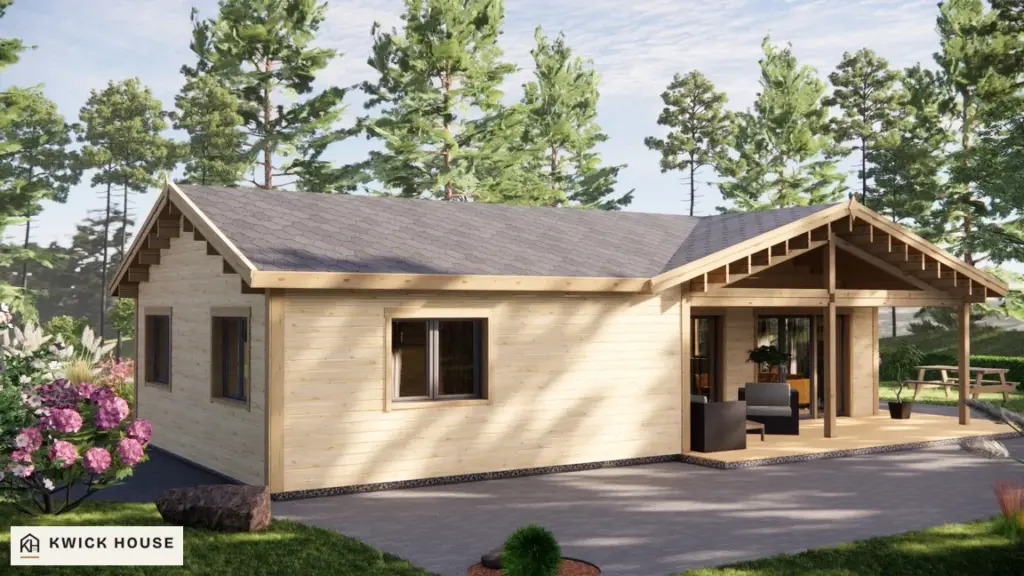

Log Cabin 68 m² with Cladding, visualisation of the long side with the covered terrace on the right — 03/05 Visualisation of the Log Cabin 68 m² with Cladding: the long side, with a gable end on the left and the covered terrace on the right. The furniture is not part of the kit. Shown with horizontal cladding and the optional roof covering, windows and external doors, and terrace decking.

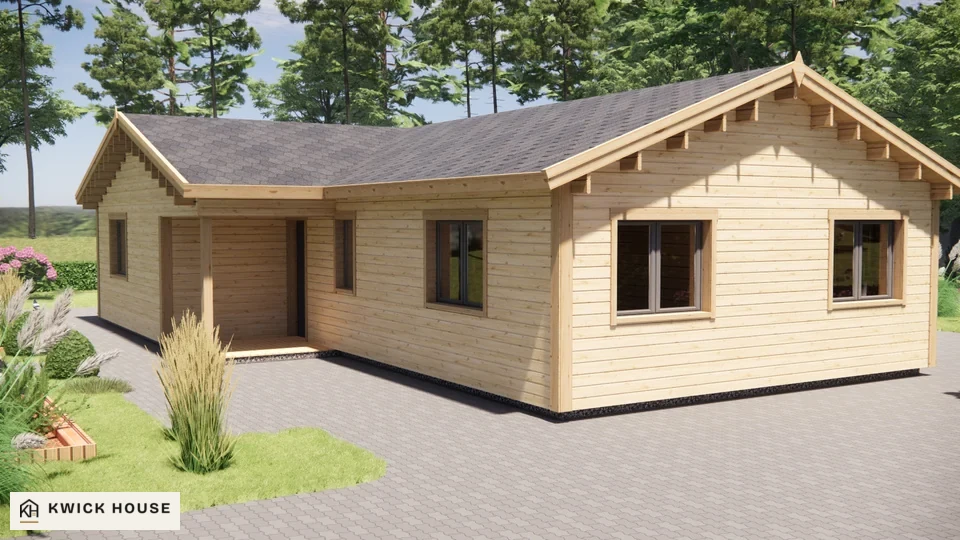

Log Cabin 68 m² with Cladding, corner visualisation of a gable end with two windows and the recessed entrance porch — 04/05 Visualisation of the Log Cabin 68 m² with Cladding from one corner: the gable end with its two windows, and the entrance side with the recessed porch. Shown with horizontal cladding and the optional roof covering, windows and external doors, and terrace decking.

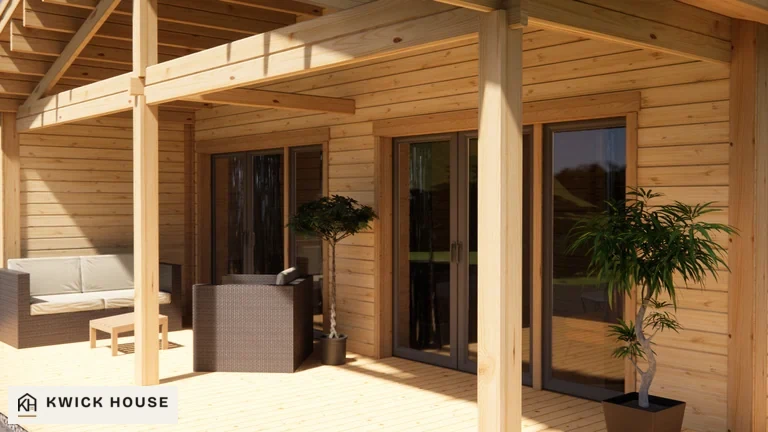

Log Cabin 68 m² with Cladding, close-up visualisation of the horizontal cladding under the covered terrace — 05/05 Visualisation of the Log Cabin 68 m² with Cladding, close up under the covered terrace: horizontal cladding boards around the glazed double doors. The furniture and plants are not part of the kit. Shown with the optional windows and external doors, and terrace decking.

Show picture 1 of 5
Show picture 2 of 5
Show picture 3 of 5
Show picture 4 of 5
Show picture 5 of 5

Kit from €16,500

Bank transfer only: the full amount, or a 50% deposit first and the balance with the delivery invoice when your kit is ready.
Made to order. Allow 8 to 10 weeks to delivery from the day your payment or deposit reaches us.
10-year warranty on the timber structure.
Drawings and step-by-step instructions in English for your model are included.
Delivery is not included. We price it for your address and invoice it separately when your kit is ready.

Choose the options Ask a question

What the kit price covers

Everything in the first list below is included in the kit price of the Log Cabin 68 m² with Cladding. The second list shows what is not.

In the kit price

The timber structure of the building
Floor boards, 18 mm
Roof boards, 18 mm
Treated floor bearers, 45 x 100 mm
Cladding boards for the outside walls, 18 mm
Covered terrace posts, beams and roof boards
4 internal doors, 850 x 1920 mm
Step-by-step instructions for your model
Drawings and a parts list for your model
Fixings for assembly

Not in the kit price

The options below, each priced separately
A foundation: you build the base to suit your ground
Assembly: kits are sold for self-assembly
Paint and wood finish: apart from the treated floor bearers, the kit arrives as bare timber. Paint it yourself, any colour
Delivery: invoiced separately when your kit is ready
Unloading: the lorry has no crane, so you need a forklift or a telehandler on site
Electrics, lighting, heating and water: none of them is sold as an option

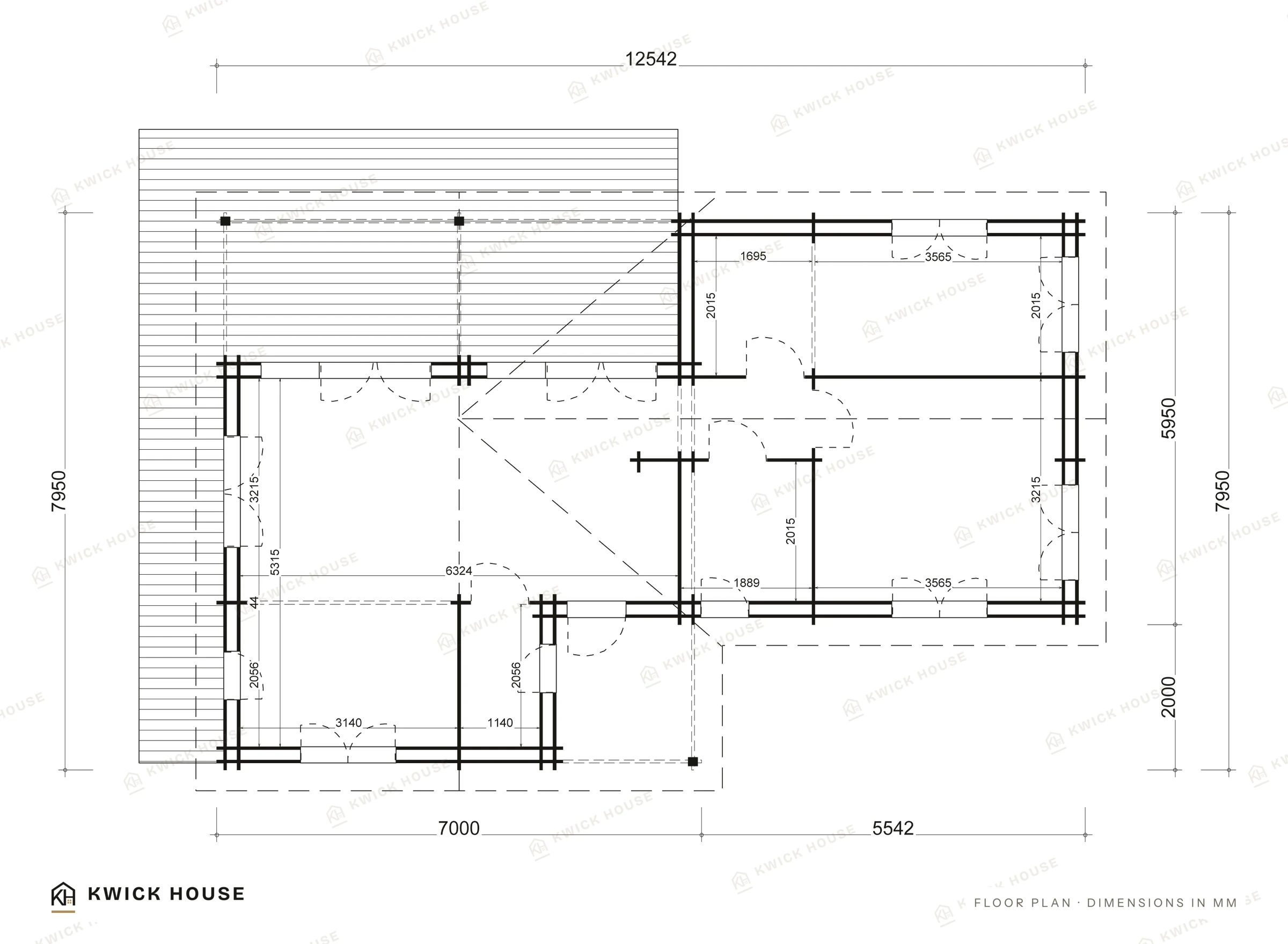

L-shaped floor plan

Dimensions are in millimetres. The other drawings for your model come with the kit. How assembly works

Specification

External dimensions	12,542 x 7,950 mm. L-shaped plan, measured over the 18 mm cladding, with the covered terrace included. The roof overhang is not counted.
Floor area	68 m². Internal floor area, not counting the covered terrace.
Walls	44 mm + cladding, tongue-and-groove, spruce or pine
Levels	1
Rooms	6
Ridge height	3,630 mm
Floor boards	18 mm
Roof boards	18 mm
Floor bearers	45 x 100 mm, treated
Terrace decking	28 mm; in the options
External cladding	145 x 18 mm boards, 120 x 18 mm boards, vertical or horizontal
Internal doors	4 at 850 x 1920 mm; in the kit
External doors	3 at 1610 x 1920 mm, 1 at 850 x 1920 mm; in the options
Windows	3 at 700 x 1050 mm, 5 at 1380 x 1050 mm, 2 at 850 x 1920 mm fixed; in the options

Drawings and step-by-step instructions for your model come with the kit. The same part number appears in the parts list and on the drawings.

Delivery, payment and warranty

Made to order: Allow 8 to 10 weeks to delivery from the day your payment reaches us, whether the full amount or the deposit. That counts the weeks in the workshop and the time on the road, and it is an estimate rather than a fixed date. How it works, step by step
Unloading: The kit comes by road on pallets and stays at our risk until the pallets are handed over at your address. The lorry has no crane, so you unload it with a forklift or a telehandler that you hire. Delivery and payment
Delivery price: Delivery is not in the kit price. We price it for your address and invoice it separately when your kit is ready, together with the balance if you paid a deposit. The kit leaves the workshop once that payment reaches us.
Warranty and parts: SIA Tuuya, the seller, gives a 10-year warranty on the timber structure. We replace a missing or damaged part free of charge and send it within 2 weeks.

Order summary

Kit: €16,500
Options: +€0

No options chosen yet.

Kit and options: €16,500
Delivery: Invoiced separately
VAT: As shown at checkout

What happens after you order

Add the kit to your basket and place the order at checkout. Nothing is paid online: our bank details are shown when you place the order and sent in the order email.
Pay by bank transfer, the full amount or a 50% deposit, with your order number as the payment reference. Your kit goes into production once at least the deposit reaches us.
When the kit is ready, we email you the delivery invoice, with the balance if you paid a deposit, to pay in one transfer. Once that payment reaches us, we agree the delivery day with you before the lorry leaves the workshop.

What to know before you order

Do I need planning permission?

It depends on where the building goes and how you use it. Check the rules for your address before you order.

For the UK, see our guide to planning permission for log cabins.

Is the kit insulated?

The walls are 44 mm logs with external cladding, and the kit price includes no insulation. Insulation is an option on this model, chosen part by part above: floor, walls and roof, 100 mm each. Heating and electrics are not part of the kit.

Are the windows and external doors included?

No. They are an option, with uPVC or timber frames. The option covers the 4 external doors and 10 windows in the specification, two of the windows fixed. The 4 internal doors are in the kit.

What is a clad log wall?

The walls are one layer of 44 mm tongue-and-groove logs in spruce or pine, with 18 mm cladding boards fixed over the outside. The cladding is in the kit price, whichever way the boards run: vertically (145 mm wide) or horizontally (120 mm wide). We ask which you want after you order.

How is this cabin different from the Twin Skin version?

The plan, the six rooms and the door and window openings are the same. The Twin Skin version has walls of two 44 mm log layers. This one has a single 44 mm log layer under 18 mm cladding, and deeper floor bearers: 45 x 100 mm instead of 45 x 50 mm.
