Log Cabin 68 m², Twin Skin

Model KH-HOUSE-01

A 68 m² L-shaped log cabin kit with six rooms, a covered terrace and twin skin walls: two layers of 44 mm logs.

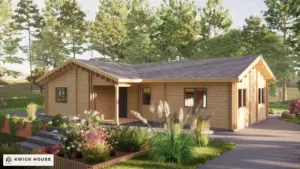

Log Cabin 68 m², Twin Skin, visualisation of the entrance side with its recessed porch
01/05 Visualisation of the Log Cabin 68 m², Twin Skin from the entrance side, with the porch set back beside a gable end. Shown with the optional roof covering, windows and external doors, and terrace decking.

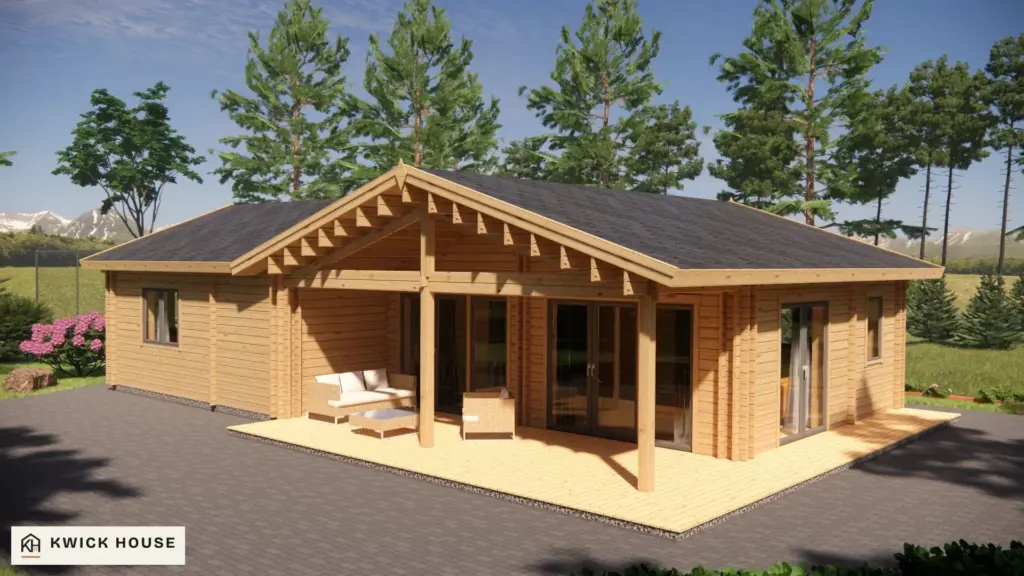

Log Cabin 68 m², Twin Skin, visualisation of the covered terrace with glazed double doors
02/05 Visualisation of the Log Cabin 68 m², Twin Skin: the covered terrace under its gable roof, with glazed double doors opening onto the decking. The furniture is not part of the kit. Shown with the optional roof covering, windows and external doors, and terrace decking.

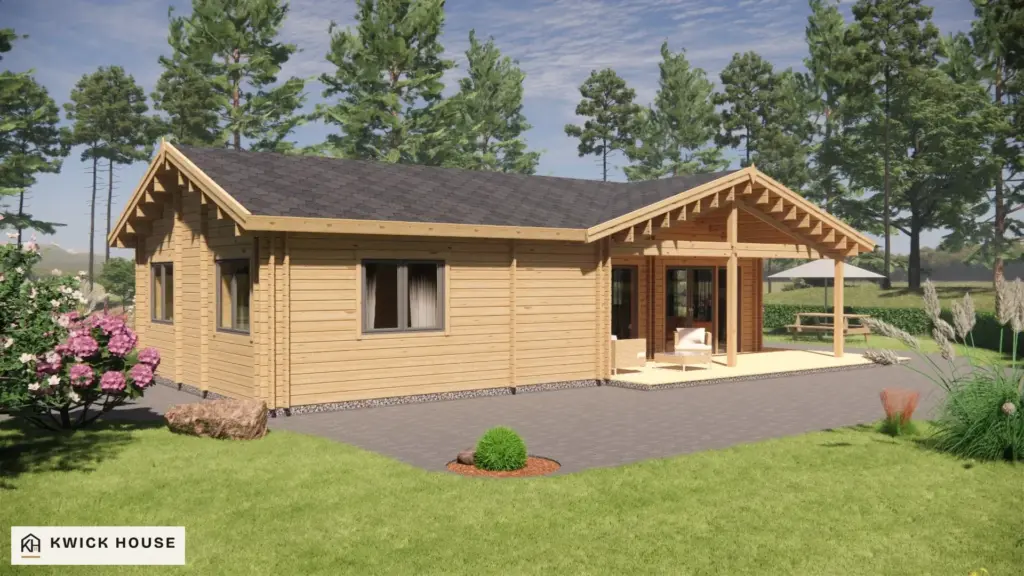

Log Cabin 68 m², Twin Skin, visualisation of the long side with the covered terrace on the right
03/05 Visualisation of the Log Cabin 68 m², Twin Skin: the long side, with the covered terrace on the right. The furniture is not part of the kit. Shown with the optional roof covering, windows and external doors, and terrace decking.

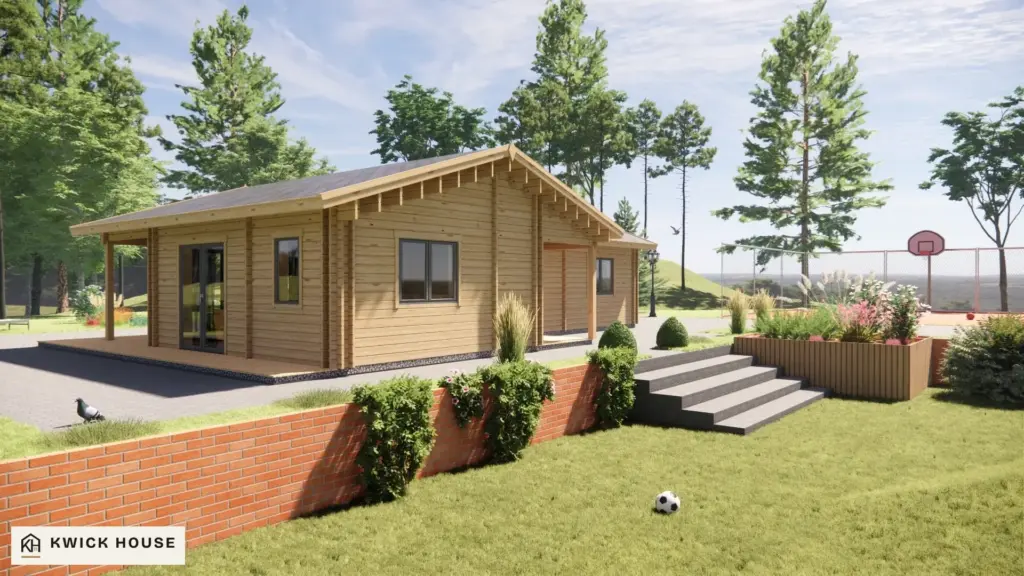

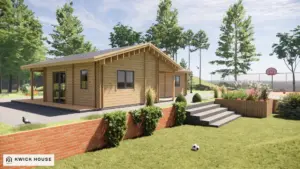

Log Cabin 68 m², Twin Skin, visualisation of the gable end beside the entrance porch, seen from one corner
04/05 Visualisation of the Log Cabin 68 m², Twin Skin from one corner: the gable end beside the entrance porch, and the side wall with its glazed double doors. Shown with the optional roof covering, windows and external doors, and terrace decking.

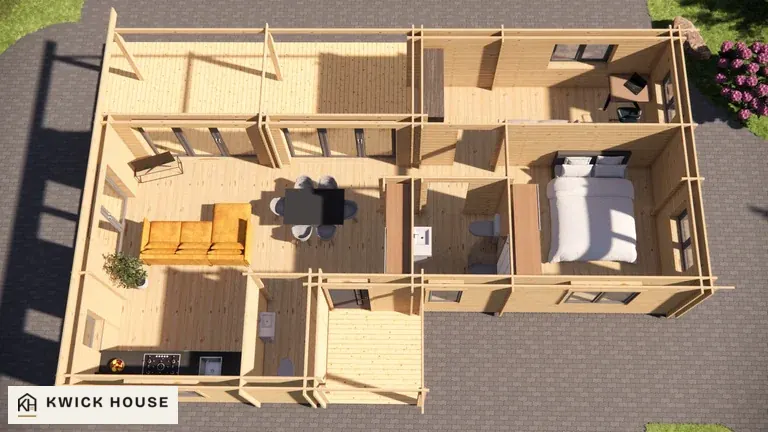

Log Cabin 68 m², Twin Skin, cutaway visualisation from above showing the room layout
05/05 Visualisation of the Log Cabin 68 m², Twin Skin with the roof removed, seen from above to show the room layout. The furniture and the kitchen and bathroom fittings are not part of the kit. Shown with the optional windows, external doors and terrace decking.
  1. Show picture 1 of 5
  2. Show picture 2 of 5
  3. Show picture 3 of 5
  4. Show picture 4 of 5
  5. Show picture 5 of 5

Kit from €16,150

  • Bank transfer only: the full amount, or a 50% deposit first and the balance with the delivery invoice when your kit is ready.
  • Made to order. Allow 8 to 10 weeks to delivery from the day your payment or deposit reaches us.
  • 10-year warranty on the timber structure.
  • Drawings and step-by-step instructions in English for your model are included.
  • Delivery is not included. We price it for your address and invoice it separately when your kit is ready.

Choose the options Ask a question

What the kit price covers

Everything in the first list below is included in the kit price of the Log Cabin 68 m², Twin Skin. The second list shows what is not.

In the kit price

  • The timber structure of the building
  • Floor boards, 18 mm
  • Roof boards, 18 mm
  • Treated floor bearers, 45 x 50 mm
  • Covered terrace posts, beams and roof boards
  • 4 internal doors, 850 x 1920 mm
  • Step-by-step instructions for your model
  • Drawings and a parts list for your model
  • Fixings for assembly

Not in the kit price

  • The options below, each priced separately
  • A foundation: you build the base to suit your ground
  • Assembly: kits are sold for self-assembly
  • Paint and wood finish: apart from the treated floor bearers, the kit arrives as bare timber. Paint it yourself, any colour
  • Delivery: invoiced separately when your kit is ready
  • Unloading: the lorry has no crane, so you need a forklift or a telehandler on site
  • Electrics, lighting, heating and water: none of them is sold as an option

L-shaped floor plan

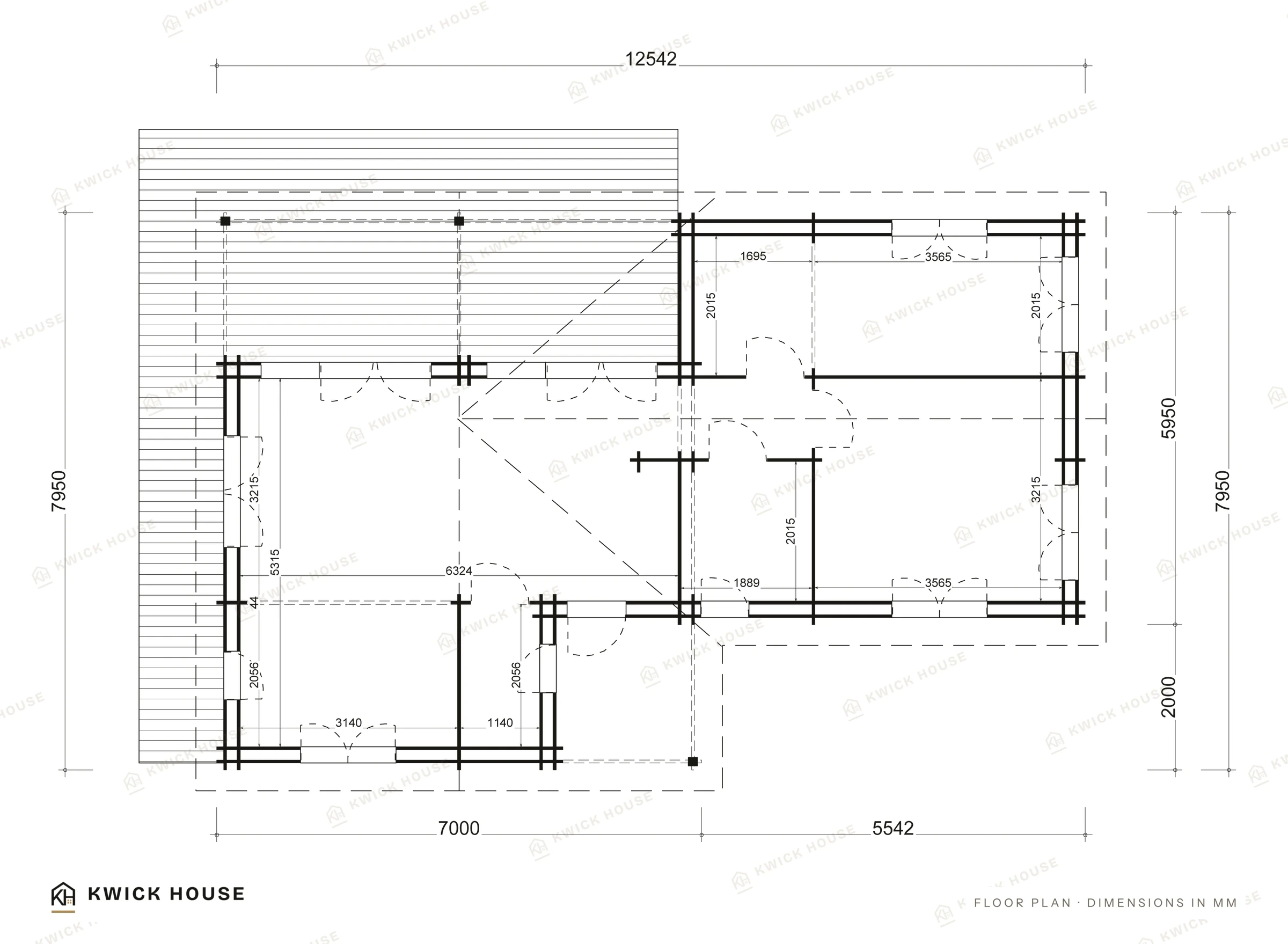

Floor plan of the Log Cabin 68 m², Twin Skin: L-shaped, 12,542 x 7,950 mm overall with the covered terrace included. Enlarge

Dimensions are in millimetres. The other drawings for your model come with the kit. How assembly works

Specification

External dimensions12,542 x 7,950 mm. L-shaped plan, measured over the walls with the covered terrace included. The roof overhang is not counted.
Floor area68 m². Internal floor area, not counting the covered terrace.
Walls44 + 44 mm, tongue-and-groove, spruce or pine
Levels1
Rooms6
Ridge height3,630 mm
Floor boards18 mm
Roof boards18 mm
Floor bearers45 x 50 mm, treated
Terrace decking28 mm; in the options
Internal doors4 at 850 x 1920 mm; in the kit
External doors3 at 1610 x 1920 mm, 1 at 850 x 1920 mm; in the options
Windows3 at 700 x 1050 mm, 5 at 1380 x 1050 mm, 2 at 850 x 1920 mm fixed; in the options

Drawings and step-by-step instructions for your model come with the kit. The same part number appears in the parts list and on the drawings.

Delivery, payment and warranty

Made to order
Allow 8 to 10 weeks to delivery from the day your payment reaches us, whether the full amount or the deposit. That counts the weeks in the workshop and the time on the road, and it is an estimate rather than a fixed date. How it works, step by step
Unloading
The kit comes by road on pallets and stays at our risk until the pallets are handed over at your address. The lorry has no crane, so you unload it with a forklift or a telehandler that you hire. Delivery and payment
Delivery price
Delivery is not in the kit price. We price it for your address and invoice it separately when your kit is ready, together with the balance if you paid a deposit. The kit leaves the workshop once that payment reaches us.
Warranty and parts
SIA Tuuya, the seller, gives a 10-year warranty on the timber structure. We replace a missing or damaged part free of charge and send it within 2 weeks.

Kit options and prices

Prices are for the Log Cabin 68 m², Twin Skin, and come on top of the kit price. An option is added only when you select it.

Roof covering
No roof covering. The 18 mm roof boards are in the kit.
+€1,100 Bitumen shingles with underlay, verge trims and fixings, laid over the 18 mm roof boards in the kit.
What is it?

Bitumen roofing shingles, supplied with the underlay, verge trims and fixings. They are laid over the roof boards that come with the kit.

+€2,350 Steel sheet with underlay, verge trims and fixings, laid over the 18 mm roof boards in the kit.
What is it?

Steel roofing sheet, supplied with the underlay, verge trims and fixings. It is laid over the roof boards that come with the kit.

Windows and external doors
Kit without windows or external doors. The 4 internal doors are always included.
+€8,050 The 4 external doors and 10 windows in the specification, with uPVC frames. Two of the windows are fixed.
What is it?

Windows and external doors with frames in uPVC, a rigid plastic. They arrive as finished, triple-glazed units.

+€2,550 The 4 external doors and 10 windows in the specification, with timber frames. Two of the windows are fixed.
What is it?

Windows and external doors with timber frames. They arrive as finished, single-glazed units.

Rainwater system
No gutters or downpipes.
+€2,000 Steel gutters and downpipes for this roof.
What is it?

Gutters along the edge of the roof collect rainwater, and downpipes carry it down. Both are steel.

Insulation, 100 mm

Floor, walls and roof are separate lines. Leave all three unticked for a kit without insulation.

+€1,250 100 mm of XPS insulation for the floor, with a second layer of battens.
What is it?

Insulation for the floor: XPS boards, 100 mm thick, with a second layer of battens to hold them.

+€570 100 mm of rock wool to fit on the outside of the walls, with battens, a vapour barrier against the logs, a breathable membrane over the wool and cladding boards to cover it, all in the option price. From outside, the walls then show cladding, not logs.
What is it?

Insulation for the walls: rock wool, 100 mm thick, with battens, a vapour barrier against the logs and a breathable membrane over the wool.

+€2,750 100 mm of rock wool to fit on the inside of the roof, with battens, a vapour barrier on the room side and a breathable membrane over the wool. The inner boarding that covers the insulation is not included.
What is it?

Insulation for the roof: rock wool, 100 mm thick, to fit on the inside of the roof, with battens, a vapour barrier on the room side and a breathable membrane over the wool. The inner boarding that covers the insulation is not included.

Terrace decking
No decking: the covered terrace and the entrance porch have no floor.
+€1,450 28 mm decking boards and bearers for the covered terrace and the entrance porch.
What is it?

Decking boards for the terrace floor.

Order summary

Kit
€16,150
Options
+€0
  • No options chosen yet.

Kit and options
€16,150
Delivery
Invoiced separately
VAT
As shown at checkout

What happens after you order

  1. Add the kit to your basket and place the order at checkout. Nothing is paid online: our bank details are shown when you place the order and sent in the order email.
  2. Pay by bank transfer, the full amount or a 50% deposit, with your order number as the payment reference. Your kit goes into production once at least the deposit reaches us.
  3. When the kit is ready, we email you the delivery invoice, with the balance if you paid a deposit, to pay in one transfer. Once that payment reaches us, we agree the delivery day with you before the lorry leaves the workshop.

What to know before you order

Do I need planning permission?

It depends on where the building goes and how you use it. Check the rules for your address before you order.

For the UK, see our guide to planning permission for log cabins.

Is the kit insulated?

The walls are two layers of 44 mm logs, and the kit price includes no insulation. Insulation is an option on this model, chosen part by part above: floor, walls and roof, 100 mm each. Heating and electrics are not part of the kit.

Are the windows and external doors included?

No. They are an option, with uPVC or timber frames. The option covers the 4 external doors and 10 windows in the specification, two of the windows fixed. The 4 internal doors are in the kit.

What does twin skin mean?

The walls are built from two layers of 44 mm tongue-and-groove logs, 44 + 44 mm, in spruce or pine.

How it could look

Visualisations of the Log Cabin 68 m², Twin Skin on a plot, shown with optional extras.

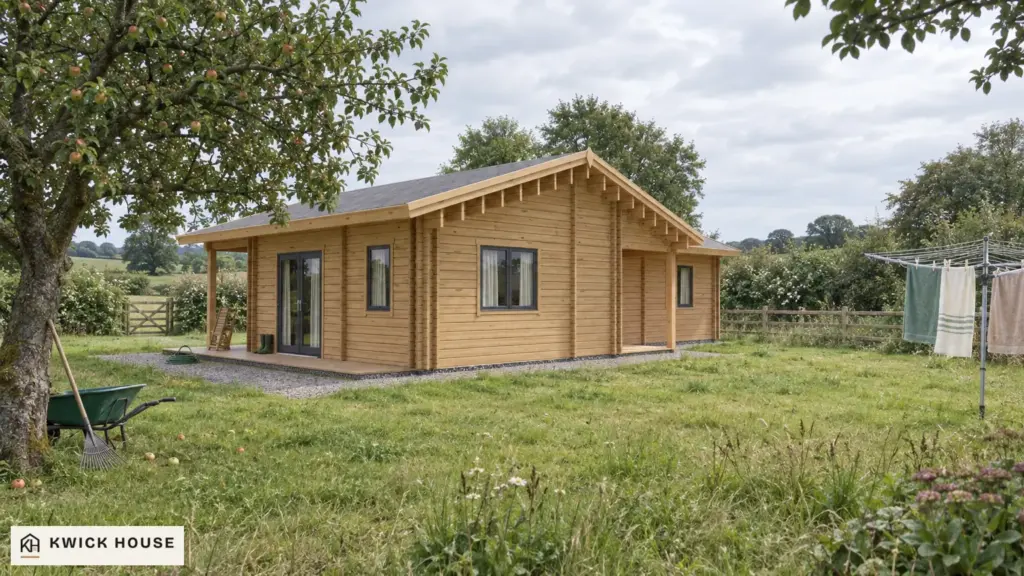

Log Cabin 68 m², Twin Skin, visualisation in a country garden under an overcast sky
Visualisation: how the Log Cabin 68 m², Twin Skin could look in a country garden. Shown with the optional roof covering, windows and external doors, and terrace decking.

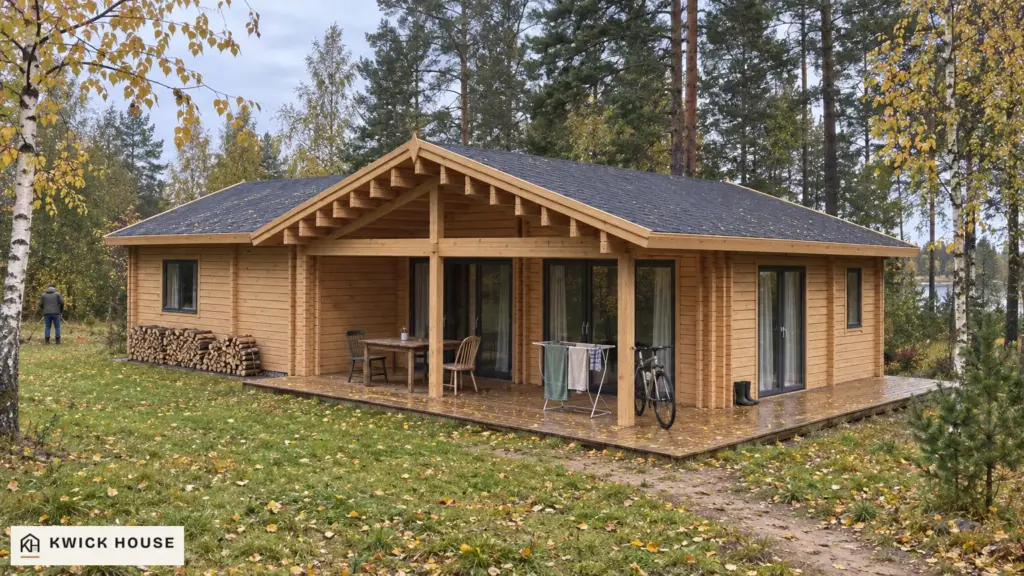

Log Cabin 68 m², Twin Skin, visualisation of the terrace side on a woodland plot in autumn
Visualisation: how the Log Cabin 68 m², Twin Skin could look on a woodland plot in autumn. Shown with the optional roof covering, windows and external doors, and terrace decking.
