Log Cabin 13.6m x 7.6m with Cladding, 98 m²

Name: Log Cabin 13.6m x 7.6m with Cladding, 98 m²
Brand: KWICK HOUSE
SKU: KH-HOUSE-05-CL
Availability: InStock

Model KH-HOUSE-05-CL

A 98 m² single-storey log cabin kit with four rooms, a bathroom and a storeroom, and 18 mm cladding over 44 mm logs.

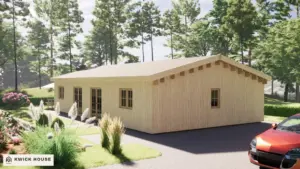

Log Cabin 13.6m x 7.6m with Cladding, 98 m², visualisation of a gable end with cladding laid vertically — 01/04 Visualisation of the Log Cabin 13.6m x 7.6m with Cladding, 98 m²: the gable end with one small window and, on the left, the long side with two glazed double doors. Shown with the cladding laid vertically. The car and the landscaping are not part of the kit. Options shown: roof covering, windows and external doors.

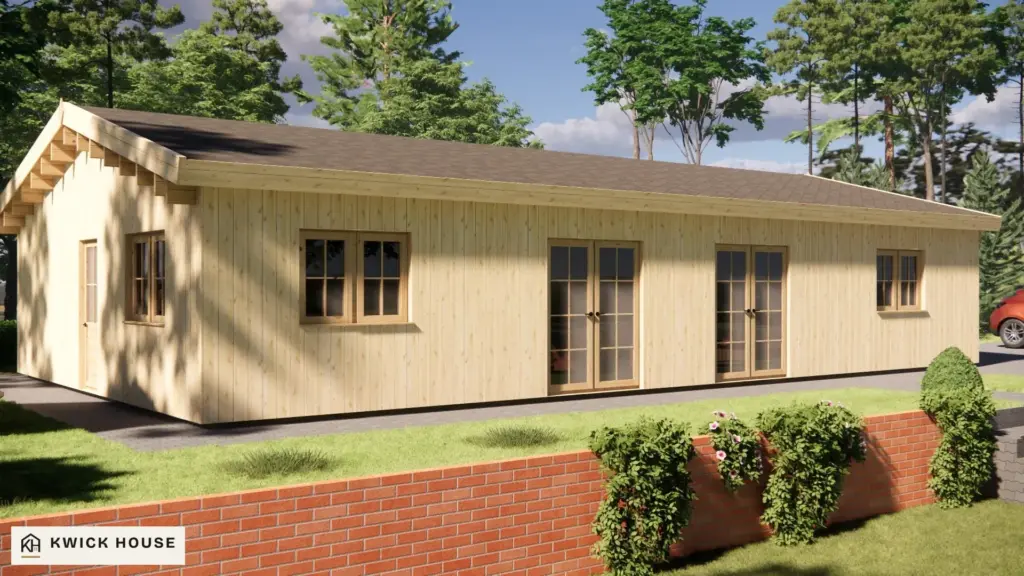

Log Cabin 13.6m x 7.6m with Cladding, 98 m², visualisation of the long side with two glazed double doors — 02/04 Visualisation of the Log Cabin 13.6m x 7.6m with Cladding, 98 m²: the long side with two glazed double doors, and on the left the gable end with a single door and a window. The car and the landscaping are not part of the kit. Options shown: roof covering, windows and external doors.

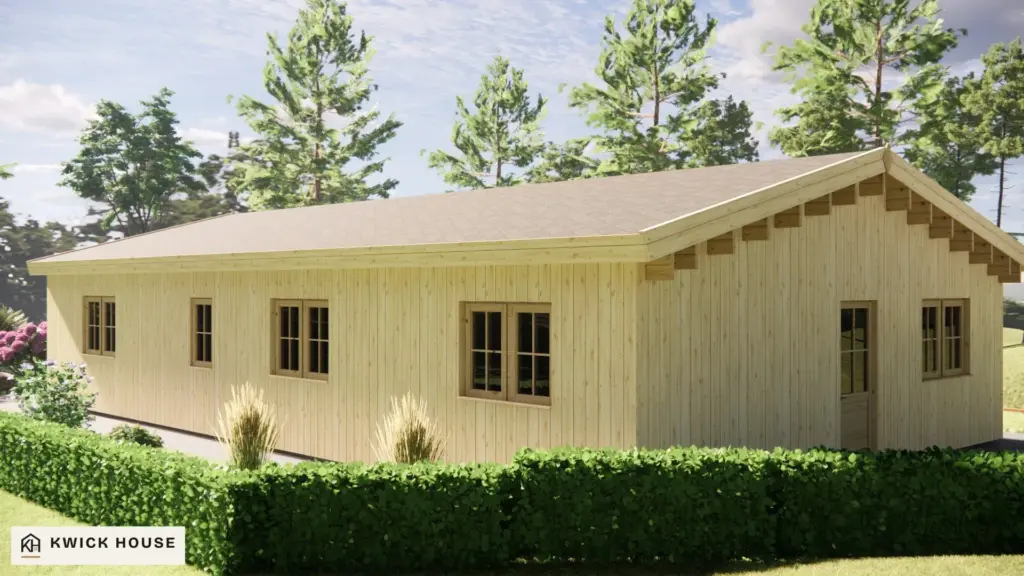

Log Cabin 13.6m x 7.6m with Cladding, 98 m², visualisation of the back with four windows and the end with a single door — 03/04 Visualisation of the Log Cabin 13.6m x 7.6m with Cladding, 98 m² from the back: four windows along the long side, and on the right the gable end with a single door and a window. The hedge and the plants are not part of the kit. Options shown: roof covering, windows and external doors.

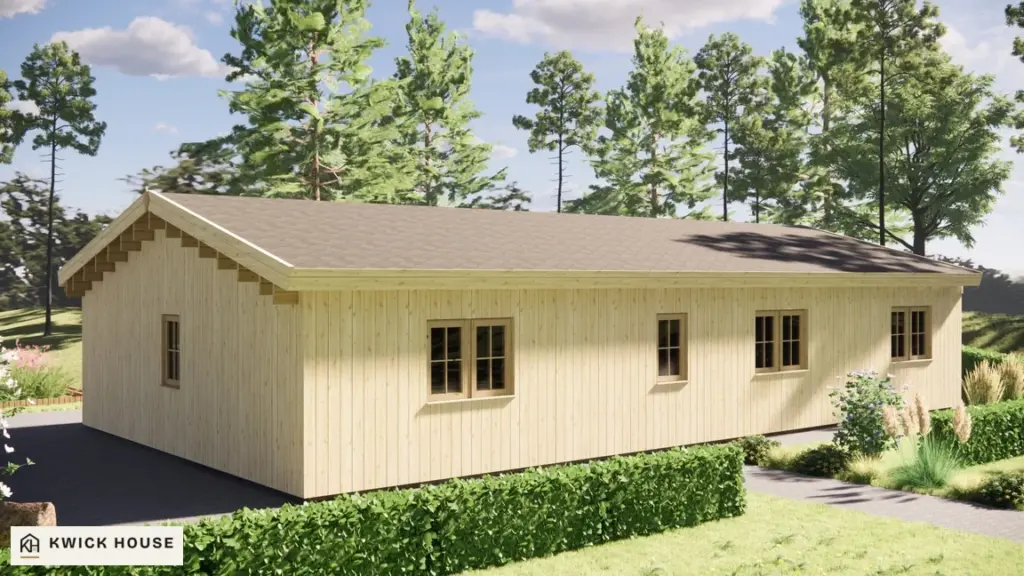

Log Cabin 13.6m x 7.6m with Cladding, 98 m², corner visualisation of the back and the gable end with one window — 04/04 Visualisation of the Log Cabin 13.6m x 7.6m with Cladding, 98 m² from the other back corner: the gable end with one small window, and the back with four windows. The hedge and the plants are not part of the kit. Options shown: roof covering, windows and external doors.

Show picture 1 of 4
Show picture 2 of 4
Show picture 3 of 4
Show picture 4 of 4

Kit from €17,200

Bank transfer only: the full amount, or a 50% deposit first and the balance with the delivery invoice when your kit is ready.
Made to order. Allow 8 to 10 weeks to delivery from the day your payment or deposit reaches us.
10-year warranty on the timber structure.
Drawings and step-by-step instructions in English for your model are included.
Delivery is not included. We price it for your address and invoice it separately when your kit is ready.

Choose the options Ask a question

What the kit price covers

Everything in the first list below is included in the kit price of the Log Cabin 13.6m x 7.6m with Cladding, 98 m². The second list shows what is not.

In the kit price

The timber structure of the building
Floor boards, 18 mm
Roof boards, 18 mm
Treated floor bearers, 45 x 50 mm
Cladding boards for the outside walls, 18 mm
5 internal doors, 850 x 1920 mm
Step-by-step instructions for your model
Drawings and a parts list for your model
Fixings for assembly

Not in the kit price

The options below, each priced separately
A foundation: you build the base to suit your ground
Assembly: kits are sold for self-assembly
Paint and wood finish: apart from the treated floor bearers, the kit arrives as bare timber. Paint it yourself, any colour
Delivery: invoiced separately when your kit is ready
Unloading: the lorry has no crane, so you need a forklift or a telehandler on site
Electrics, lighting, heating and water: none of them is sold as an option

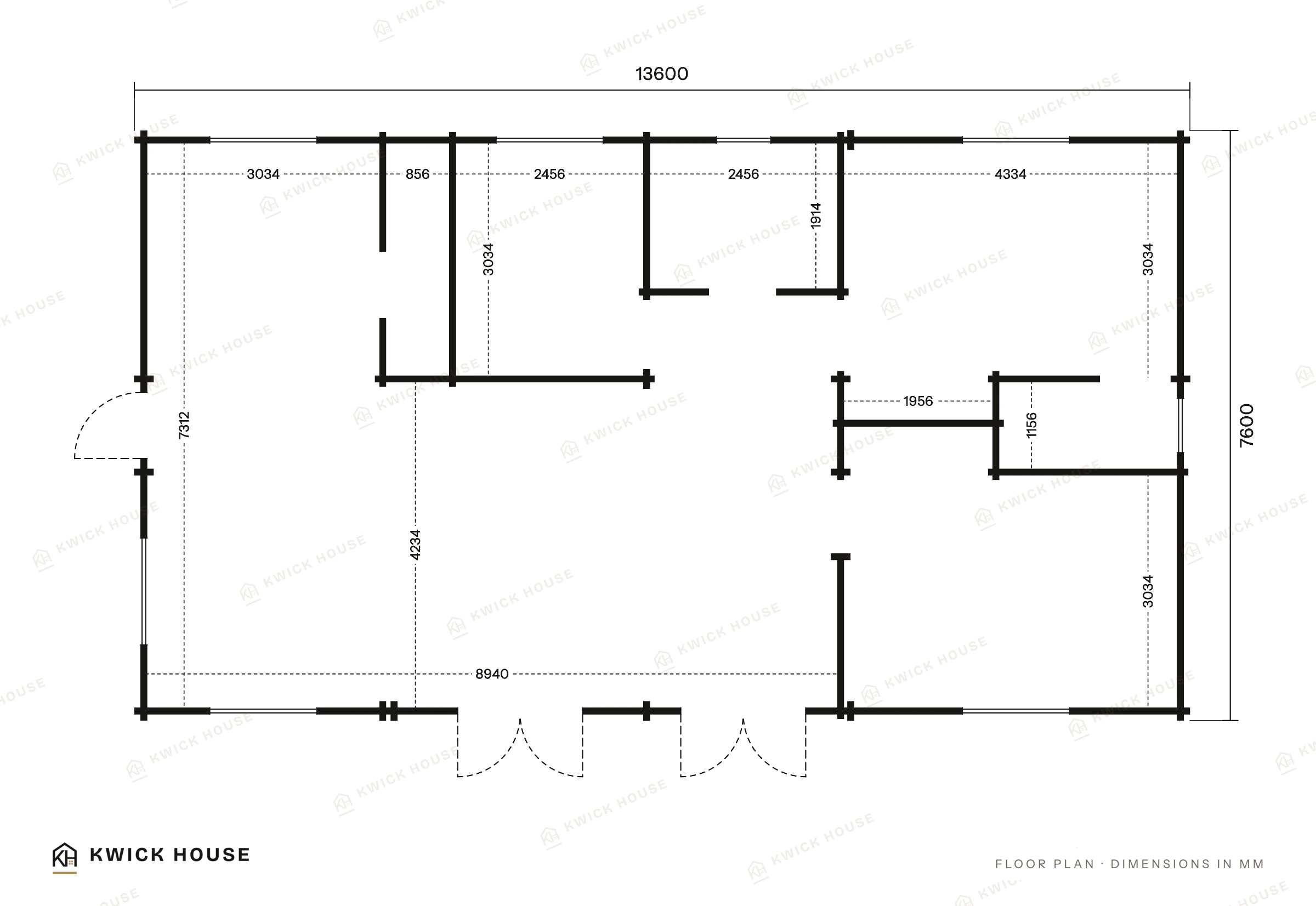

Floor plan

Dimensions are in millimetres. The other drawings for your model come with the kit. How assembly works

Specification

External dimensions	13,600 x 7,600 mm. Measured over the 18 mm cladding. The roof overhang is not counted.
Floor area	98 m²
Walls	44 mm + cladding, tongue-and-groove, spruce or pine
Levels	1
Rooms	4
Ridge height	3,300 mm
Floor boards	18 mm
Roof boards	18 mm
Floor bearers	45 x 50 mm, treated
External cladding	145 x 18 mm boards, 120 x 18 mm boards, vertical or horizontal
Internal doors	5 at 850 x 1920 mm; in the kit
External doors	2 at 1610 x 1920 mm, 1 at 850 x 1920 mm; in the options
Windows	2 at 700 x 1050 mm, 6 at 1380 x 1050 mm; in the options

Drawings and step-by-step instructions for your model come with the kit. The same part number appears in the parts list and on the drawings.

Delivery, payment and warranty

Made to order: Allow 8 to 10 weeks to delivery from the day your payment reaches us, whether the full amount or the deposit. That counts the weeks in the workshop and the time on the road, and it is an estimate rather than a fixed date. How it works, step by step
Unloading: The kit comes by road on pallets and stays at our risk until the pallets are handed over at your address. The lorry has no crane, so you unload it with a forklift or a telehandler that you hire. Delivery and payment
Delivery price: Delivery is not in the kit price. We price it for your address and invoice it separately when your kit is ready, together with the balance if you paid a deposit. The kit leaves the workshop once that payment reaches us.
Warranty and parts: SIA Tuuya, the seller, gives a 10-year warranty on the timber structure. We replace a missing or damaged part free of charge and send it within 2 weeks.

Order summary

Kit: €17,200
Options: +€0

No options chosen yet.

Kit and options: €17,200
Delivery: Invoiced separately
VAT: As shown at checkout

What happens after you order

Add the kit to your basket and place the order at checkout. Nothing is paid online: our bank details are shown when you place the order and sent in the order email.
Pay by bank transfer, the full amount or a 50% deposit, with your order number as the payment reference. Your kit goes into production once at least the deposit reaches us.
When the kit is ready, we email you the delivery invoice, with the balance if you paid a deposit, to pay in one transfer. Once that payment reaches us, we agree the delivery day with you before the lorry leaves the workshop.

What to know before you order

Do I need planning permission?

It depends on where the building goes and how you use it. Check the rules for your address before you order.

For the UK, see our guide to planning permission for log cabins.

Is the kit insulated?

The walls are 44 mm logs with external cladding, and the kit price includes no insulation. Insulation is an option on this model, chosen part by part above: floor, walls and roof, 100 mm each. Heating and electrics are not part of the kit.

Are the windows and external doors included?

No. They are an option, with uPVC or timber frames. The option covers the 3 external doors and 8 windows in the specification. Two of the doors are double doors. The 5 internal doors are in the kit.

What is a clad log wall?

The walls are one layer of 44 mm tongue-and-groove logs in spruce or pine, with 18 mm cladding boards fixed to the outside of the logs. The cladding is in the kit price, whichever way the boards run: vertically (145 mm wide) or horizontally (120 mm wide). We ask which you want after you order.

How is this cabin different from the version without cladding?

The plan, the floor area, the door and window openings and the 45 x 50 mm floor bearers are the same. This one adds 18 mm cladding boards to the outside of the same 44 mm log walls.
